Product Details:
Payment & Shipping Terms:
|
| Color: | UV | Power: | 1W 3W |
|---|---|---|---|
| Wavelength: | 380-400nm | Packages: | COB / Lambertian / DIP / LED Arrays |
| High Light: | high power uv led,ultraviolet led |
||

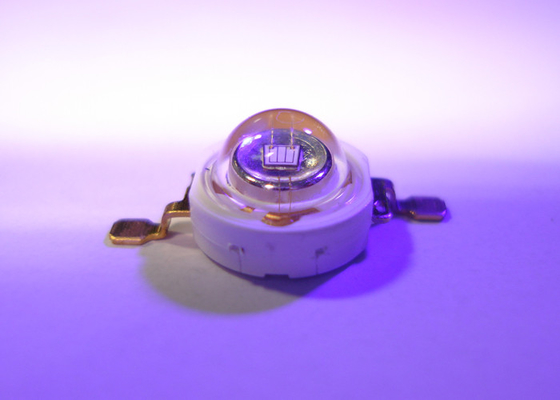

ODM / OEM UV LED Diode High Power 1W 3W UV-A LED Emitter 315 - 400 nanometers
Specifications of UV-A LED Diodes
| Item Code | Color | If (mA) | Vf (V) | Wavelength (nm) | Power (W) | Viewing Angle |
| TX-P1A140-001 | UV | 350mA | 3.5V | 380-400nm | 1W | 140° |
Spectrum of UV LEDs:
The UV spectrum includes all wavelengths between 100nm and 400nm in length and is commonly broken down into three distinct subfields:
• UV-A: 315-400 nanometers (also known as long wave UV),
• UV-B: 280-315 nanometers (also known as medium wave UV), and
• UV-C: 100-280 nanometers (also known as short wave UV).
UV LED applications include:
230-400nm: optical sensors and instrumentation
230-280nm: UV ID verification, barcodes
240-280nm: sterilization of surface areas and water
250-405nm: forensic and bodily fluid detection and analysis
270-300nm: protein analysis, drug discovery
300-320nm: medical light therapy
300-365nm: polymer and ink printing
375-395nm: counterfeit detection
390-410nm: superficial/cosmetic sterilization
Applications of UV LED Emitters:
| • Germicidal Disinfection • Water Purification • Surface Sterilization • Air Purification • Analytical Instrumentation, Emitters |
• Protein Analysis, DNA Sequencing, Drug Discovery • Forensic Analysis • Optical Sensing • Ozone Monitoring |
ODM / OEM / Customizeable R&D Special production for other types of UV LEDs:
- COB UV LED Arrays / Chip-On-Board type
- High Power Lambertian UV LEDs
- DIP Lamp UV LEDs
- UV LED Engine
- UV LED Module
