4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED

China 4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED supplier
4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED supplier 4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED supplier 4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED supplier 4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED supplier

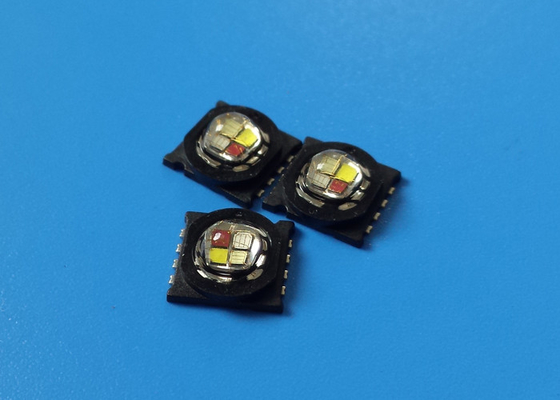

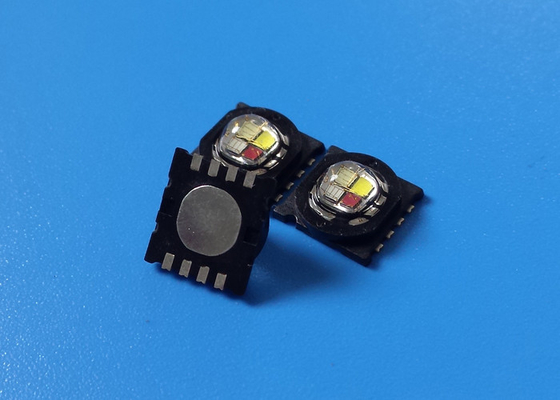

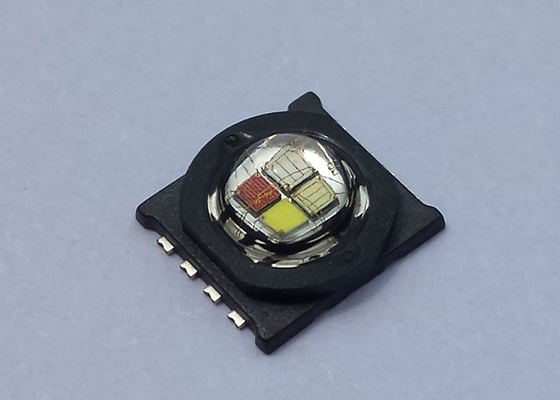

Large Image :  4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-RBWG15B120-001

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: USD
Packaging Details: In plastic Tube or Reel
Supply Ability: 100K / month
Contact Now
Detailed Product Description
Color: RGBW, RGBY Power: 15 W
If: 1A Per LED Die Vf: 3.2-3.5V
Lumen: 690lm - 800lm Angle: 120°

4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED







15W RGBW LEDs Features:



  1. Small and bright package LEDs, fully-holded patent,
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance



Specifications:



Code Color Vf (V) If (mA) λd(nm)
CCT(K)
φv(lm) Power LES(mm)
TX-RBWG15B120-001 Red 2.5-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
White 3.2-3.8 1000 6500-8500K 280-310



Code Color Vf (V) If (mA) λd(nm) φv(lm) Power LES(mm)
TX-RBYG15B120-001 Red 2.5-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
Yellow 3.2-3.8 1000 585-595 210-340





RGBA is pending. (A =  Amber, Phospher converted Amber)



4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED



Applications:



  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

4in1 RGBW LED Arrays , 690lm - 800lm 15W RGB Power LED
