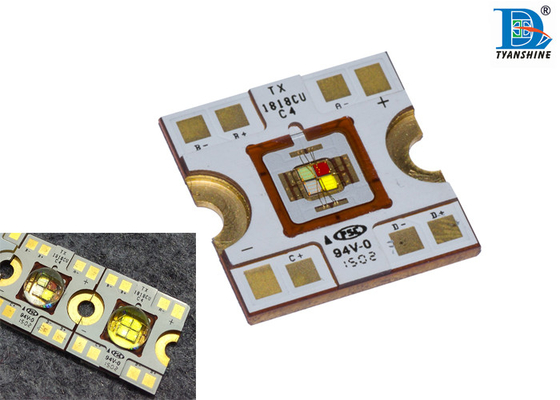

RGBW Led Light Module , 30W Multichip Color-Mixing LEDs Emitter

China RGBW Led Light Module , 30W Multichip Color-Mixing LEDs Emitter supplier

Large Image :  RGBW Led Light Module , 30W Multichip Color-Mixing LEDs Emitter

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-1818RGBW30FC120-NUVCNG-01

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: In Plastic Tray
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000pcs / Month
Contact Now
Detailed Product Description
Power: 30W Vf: 3.2-4.0V
If: 1800mA Color: RGBW Color-Mixing
Luminous Flux: 780lm-900lm Viewing Angle: 120 Degree

RGBW Led Light Module , 30W Multichip Color-Mixing LEDs Emitter





Features for 30W RGBW LEDs:



1, Small LES, High Light Density 5W/mm² ;

2, Flip-chip Eutectic-bonding, fast heat-conductivity;

3, Higher performance of RGBW 4IN1 Color-Mixing;

4, Anti-poisonous or toxic, comply with RoHS





Specifications:



Code Color

Vf

(V)

If

(mA)



J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW30FC120-NUVCNG-01 RGBW 3.2-4.0 1800 0.75 K/W 780-900 30 9 x 9



Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color
Values
Min. Typ. Max.
Luminous Flux φv R 190lm 220lm -
G 210lm 230lm -
B 55lm 65lm -
W 330lm 360lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 2.4V 2.8V 3.2V
G 3.2V 3.6V 4.0V
B 3.2V 3.6V 4.0V
W 3.2V 3.6V 4.0V



     RGBW Led Light Module , 30W Multichip Color-Mixing LEDs Emitter



Applications:



Entertainment lighting, Projection lights, Moving-Heads, SPOT, GOBO

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
