| Beam Angle: | 100 Degree | CCT: | 7000K |
|---|---|---|---|
| Power: | 150W | Vf: | 12-16V |
| If: | 11A | Package Size: | 36x36mm |
| High Light: | multi chip led,light emitting diode |
||

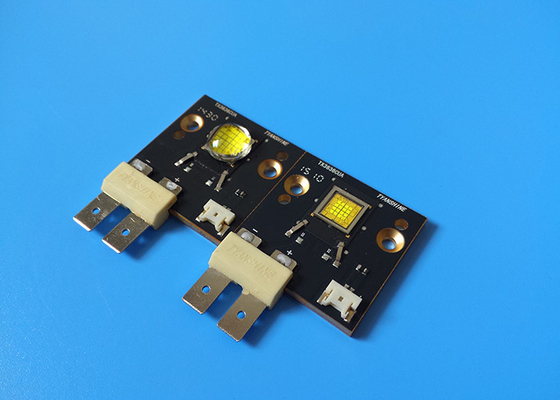

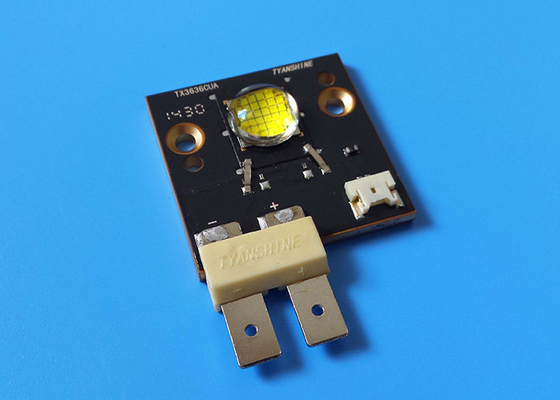

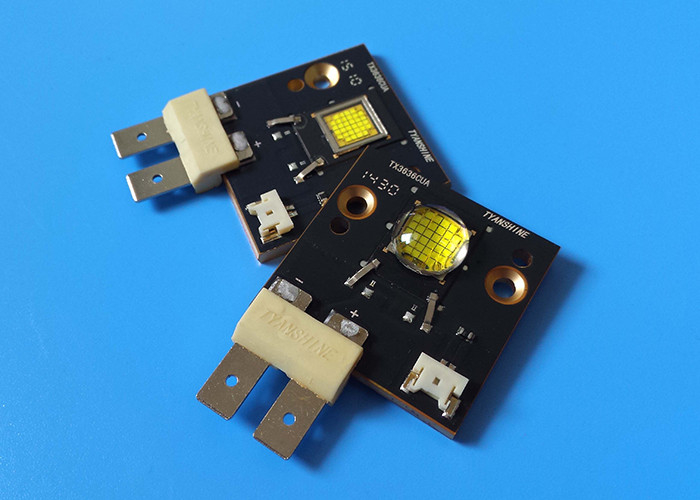

9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines
Features of the White LED:
1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for
Moving head lights.
2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance
3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.
Specifications:
| Code | Color |
Vf (V) |
If (A) |
CCT(K) |
Φv (lm) |
Power |
LES (mm) |
| TX-3636W90FC120 -NUVENG-A01 |
White | 12-16 | 6.5 | 6500-8500 | 3600-4000 | 90 | 4.3 x 4.3 |
| TX-3636W150FC120 -NUVENG-A01 |
White | 12-16 | 11 | 6500-8500 | 6000-6500 | 150 | 6.5 x 6.5 |
Ta=85℃
| Parameter | Symbol | Value (Max.) | Unit |
| LED Junction Temperature | Tj | 150 | ℃ |
| Power Dissipation | PD | 150 | W |
| Continuous Forward Current | IF | 11 | A |
| ElectrostaticDischarge Threshoid | ESD | 2000 | V |
If=11 A (Ta=85°C)
| Parameter | Symbol | Values | Unit | ||
| Min. | Typical | Max. | |||
| Luminous Flux | φV | 8500 | 9500 | - | lm |
| Viewing Angle at 50﹪IV | 2θ1/2 | - | 115 | - | Degree |
| Forward Voltage | Vf | 12 | 14 | 16 | V |
| Colour Temperature | CCT | 6500 | 7500 | 8500 | K |
| Thermal Resistance Junction to Case | RθJ-C | - | 0.2 | - | K/W |
Typical Electrical / Optical Characteristics Curves
Applications:
Package: In Plastic Tray (4 pcs)
