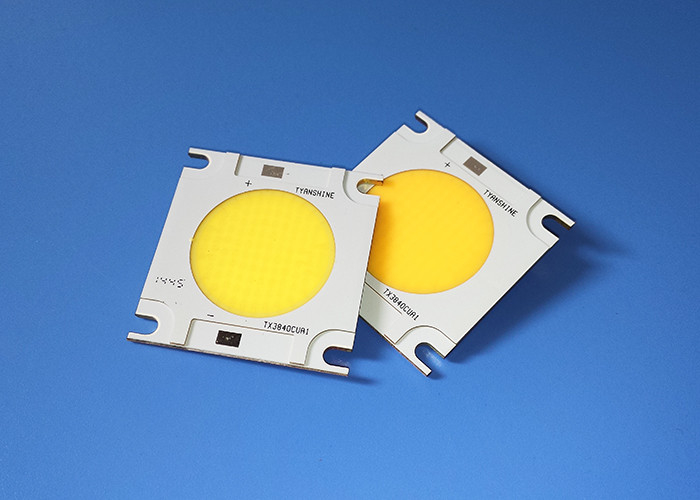

Multichip White COB Led Module 150Watt Fresnel LED 5600K

China Multichip White COB Led Module 150Watt Fresnel LED 5600K supplier
Multichip White COB Led Module 150Watt Fresnel LED 5600K supplier Multichip White COB Led Module 150Watt Fresnel LED 5600K supplier

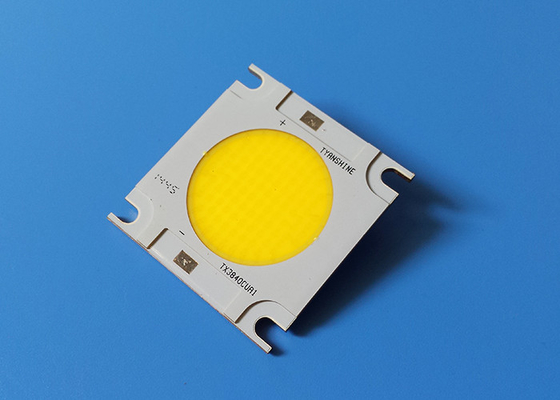

Large Image :  Multichip White COB Led Module 150Watt Fresnel LED 5600K

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-3840W150D180CUY-B01H95

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 10,000pcs/week
Contact Now
Detailed Product Description
Color Temperature: 5600°K Power: 150W
Forward Voltage: 30V Forward Current: 5A
CRI: 90Ra R9: >90
Lumen: 9500-11000lm

Multichip White COB Led Module 150Watt Fresnel LED 5600K







Fresnel LED CoB Features:



  1. High CRI, better performance, CRI 90Ra, R9 > 90
  2. High power/high efficiency package
  3. Full spectrum White Color-mixing
  4. Integraged packages, low luminous decay and long lifespan
  5. 3mm Copper MCPCB, fast heat-conductivity
  6. Easy installation, cost-saving





Specifications of COB LED Arrays:





Absolute Maximum Ratings at Ta=25℃



Parameter Symbol Values Units
Min. Typical Max.
Forward Voltage VF 28 31 34 V
Continuous Forward Current IF   5   A
Power Dissipation PD   150   W
Luminous Flux φV 11000 14000   lm
Correlated Colour Temperature CCT 5000 6000 7000 K
Color Rendering Index Ra 95 98
LED Junction Temperature Tj   150   ℃
ElectrostaticDischarge Threshoid ESD   2000   V




COB LED Mechanical Dimension:



Multichip White COB Led Module 150Watt Fresnel LED 5600K







Applications:



Broadcast / Photography / TV / Film equipment luminaires

LED Fresnels light

Entertainment stage / studio lighting

Architectural lighting



Multichip White COB Led Module 150Watt Fresnel LED 5600K
