3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module

China 3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module supplier
3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module supplier 3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module supplier

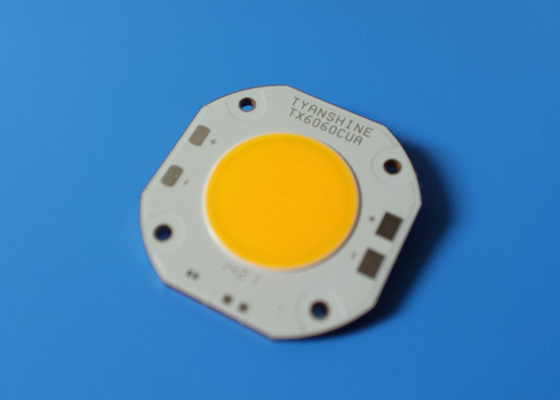

Large Image :  3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-6060W250D180CUY-C01H95

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Power: 250W Forward Voltage: 24-28V
Forward Current: 7.5A Color Temperature: 3000K
CRI: 95Ra LES: Φ37mm
Efficiency: 80lm/W COB Size: 60x60mm

3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module





Features:

  1. High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
  2. High power/high efficiency package
  3. Full spectrum White Color-mixing by RGBY
  4. Integraged packages, low luminous decay and long lifespan
  5. 3mm Copper MCPCB, fast heat-conductivity
  6. Easy installation, save cost



Specifications:





Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Values Units
Min. Typical Max.
Forward Voltage VF 24 26 28 V
Continuous Forward Current IF   7.5   A
Power Dissipation PD   250   W
Luminous Flux φV 12000 16000   lm
Correlated Colour Temperature CCT 2700 3100 3500 K
Color Rendering Index Ra 90 95
LED Junction Temperature Tj   150
ElectrostaticDischarge Threshoid ESD   2000   V



Code Color

Vf

(V)

If

(A)

CCT

(K)

Φv

(lm)

Power

LES

(mm)

CRI

(Ra)

TX-6060W250D180CUY-C01H95

Warm White 24-28 7.5 3000-3300 10000-12000 250 Φ37 ≥95

TX-6060W250D180CUY-B01H90

White 24-28 7.5 5000-5600 12000-16000 250 ≥90





Applications:



Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting



3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module
