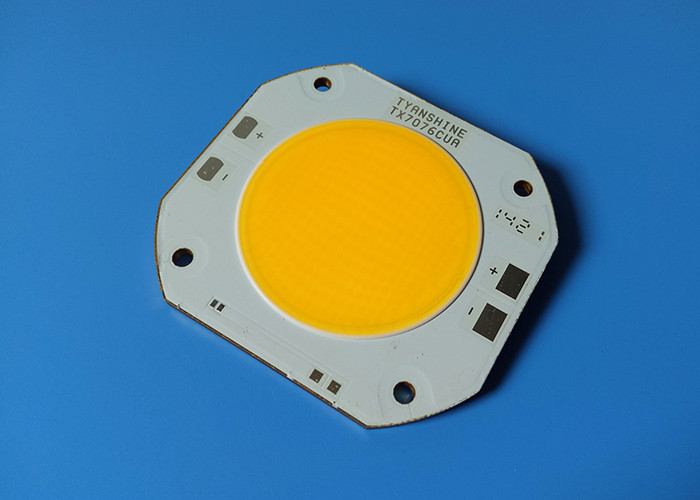

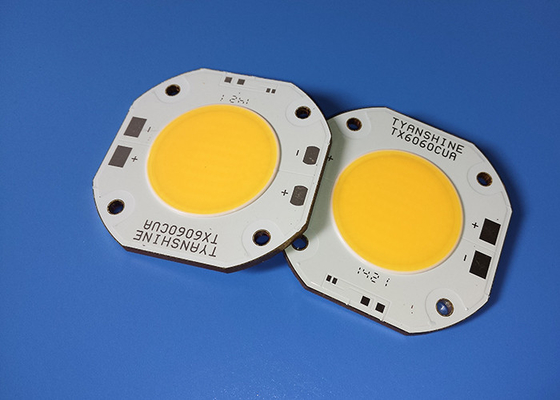

5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module

China 5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module supplier
5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module supplier 5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module supplier

Large Image :  5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-7076W4000D180CUY-B02H90

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Power: 4000W Forward Voltage: 44-48V
Forward Current: 8000mA Color Temperature: 5600K / 3200K
CRI: 95Ra LES: Φ52mm
Efficiency: 80lm/W COB Dimension: 70*76mm

5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module









Features:

  1. High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
  2. High power/high efficiency package
  3. Full spectrum White Color-mixing by RGBY
  4. Integraged packages, low luminous decay and long lifespan
  5. 3mm Copper MCPCB, fast heat-conductivity
  6. Easy installation, save cost



Specifications:




Code Color

Vf

(V)

If

(A)

CCT

(K)

Φv

(lm)

Power

LES

(mm)

CRI

(Ra)

TX-7076W400D180CUY

-C01H95

Warm White 42-48 6.5-8.5 3000-3300 20000-28000 400 Φ52 ≥95

TX-7076W400D180CUY

-B01H90

White 42-48 6.5-8.5 5000-5600 24000-32000 400 ≥90




Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Values Units
Min. Typical Max.
Forward Voltage VF 44 - 48 V
Continuous Forward Current IF   8   A
Power Dissipation PD   400   W
Luminous Flux φV 28000 32000   lm
Correlated Colour Temperature CCT 5000 6000 7000 K
Color Rendering Index Ra 90 95
LED Junction Temperature Tj   150
ElectrostaticDischarge Threshoid ESD   2000   V





Applications:



Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting

5600K Fresnel LEDs 400W COB LED Array , CRI 90Ra White COB LED Module
