Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE

China Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE supplier
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE supplier Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE supplier Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE supplier Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE supplier

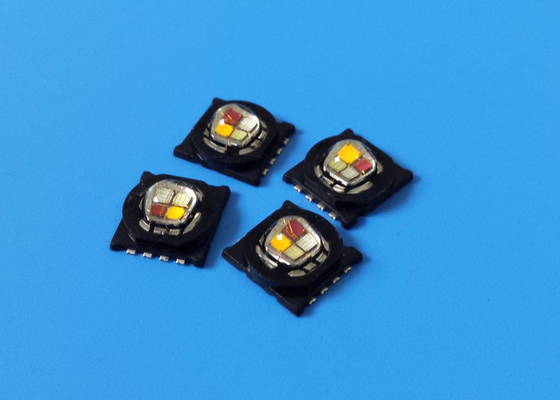

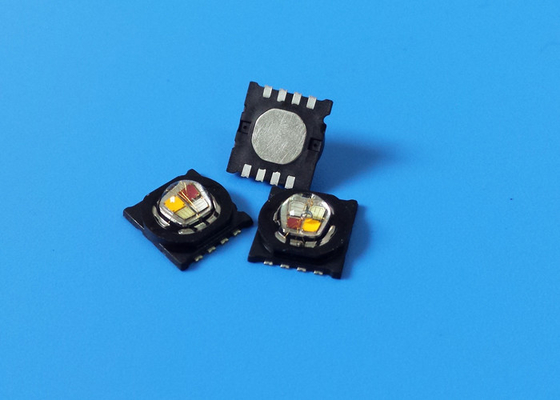

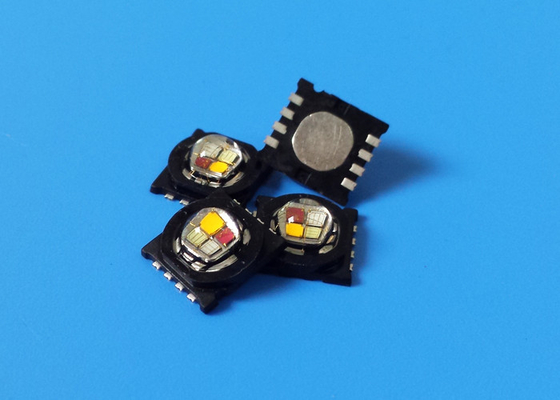

Large Image :  Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-RBWG15B120-001

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: USD

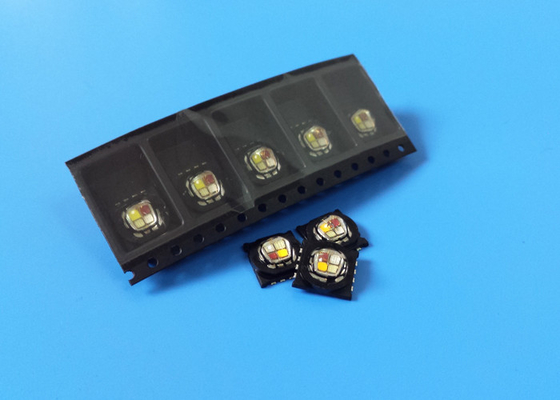

Packaging Details: In plastic Tube or Reel
Supply Ability: 100K / month
Contact Now
Detailed Product Description
Color: RGB-Amber Power: 15Watt
Current: 1000mA Voltage: DC 3.2-3.5V
Viewing Angle: 120° LES: Φ5.8 Mm
Dimension: 9 * 9mm

Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE







Features of the RGBW / RGBA LEDs:



  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance



Specifications:



RGBW Color Vf (V) If (mA) λd(nm)
CCT(K)
φv(lm) Power LES(mm)
TX-RBWG15B120-001 Red 2.4-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
White 3.2-3.8 1000 6500-8500K 280-310



RGBA Color Vf (V) If (mA) λd(nm)
CCT(K)
φv(lm) Power LES(mm)
TX-RBYG151B180-001 Red 2.4-3.2 1000 618-628 100-120 15W Φ5.8
Green 3.2-3.8 1000 520-530 145-170
Blue 3.2-3.8 1000 450-460 30-40
Amber 2.4-3.2 1000 588-595 110-130



Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE



Applications:



  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

       Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
