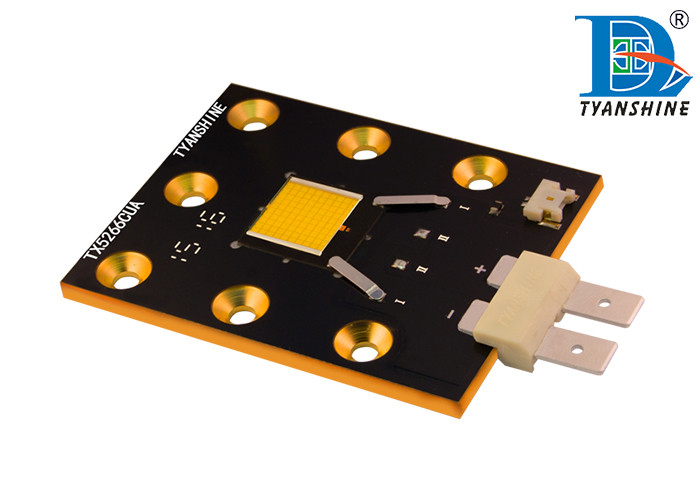

High Efficiency 300W LED Lighting Engine 8000K Multi Chip CSP LED Module

China High Efficiency 300W LED Lighting Engine 8000K Multi Chip CSP LED Module supplier
High Efficiency 300W LED Lighting Engine 8000K Multi Chip CSP LED Module supplier High Efficiency 300W LED Lighting Engine 8000K Multi Chip CSP LED Module supplier

Large Image :  High Efficiency 300W LED Lighting Engine 8000K Multi Chip CSP LED Module

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-5266W250FC120-NUFENG-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation

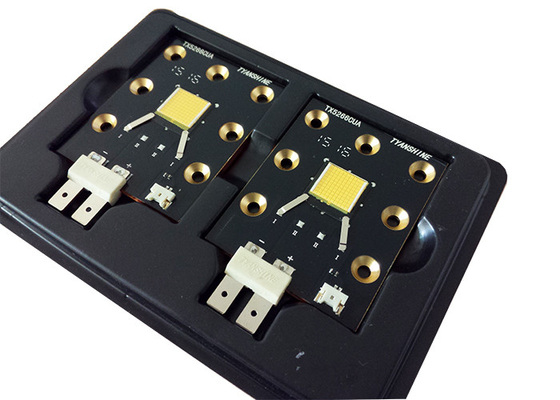

Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 10,000pcs/week
Contact Now
Detailed Product Description
CCT: 6500K-8000K Power: 300W
Voltage: 30V Current: 10A
Lumen: 22500lm



High Efficiency 300W LED Lighting Engine 8000K Multi Chip CSP LED Module





Features:



1, Small LES,High Flux Density White LED Emitters;

2, Eutectic-bonding, CSP packaging tecnology

3, Aluminium Nitride(AIN) Ceramic substrate, high thermal conductivity;

4, High light efficiency, long lumen mantenance





Specifications:



Absolute Maximum Ratings at Ta=85℃

Parameter Symbol MAX. Unit
LED Junction Temperature Tj 150
Power Dissipation PD 300 W
Continuous Forward Current IF 10 A
ESD ESD 2000 V


Characteristics at If=10A (Ta=85°C):

Parameter Symbol Values Units
Min. Typical Max.
Luminous Flux φV 20000 22500 - lm
Viewing Angle at 50﹪IV 1/2 - 115 - Deg.
Forward Voltage VF 28 30 32 V
Correlated Colour Temperature CCT 6000 7000 8000 K





Applications:



  • Architectural lighting
  • Medical illumination
  • Event lighting
  • Fiber Coupled Illumination
  • Entertainment Wash Lighting
  • Automotive Forward Lighting



Dimensions:



CSP LED Light Engine 300W White LEDs Emitter 30V 7000K LED Module
