4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters

China 4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters supplier
4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters supplier 4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters supplier 4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters supplier

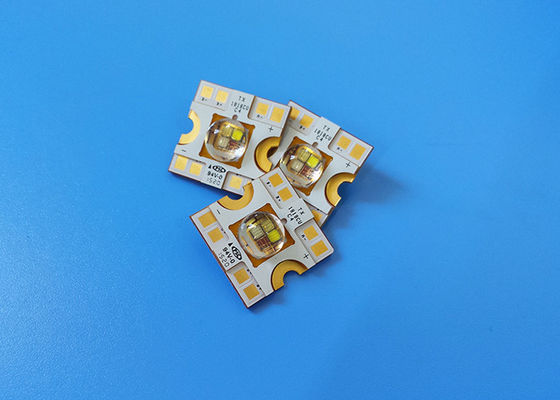

Large Image :  4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS SGS
Model Number: TX-1818RGBW30FC65-CUHCNG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: In tray
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Color: RGBW Forward Current: 1800mA
Forward Voltage: 3V Power: 30Watt
LES: Φ11 Dimension: 18 * 18mm

4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters





Features for 60W RGBW LEDs:



1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,





Specifications:



Code Color

Vf

(V)

If

(mA)



J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW60FC120-CUHCNG-01 RGBW 2-4V 1800 0.75 K/W 750-900 30 9 x 9



Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color
Values
Min. Typ. Max.
Luminous Flux φv R 190lm 220lm -
G 210lm 230lm -
B 55lm 65lm -
W 330lm 360lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 2.4V - 3.2V
G 3.2V - 4.0V
B 3.2V - 4.0V
W 3.2V - 4.0V





Applications:



Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting



4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters
