Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter

China Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter supplier
Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter supplier Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter supplier Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter supplier Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter supplier

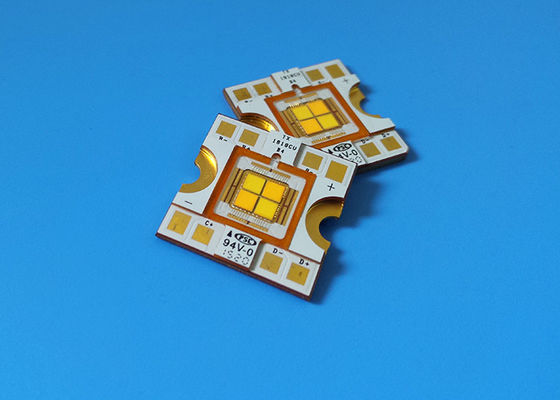

Large Image :  Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS SGS
Model Number: TX-1818WS600FC120-CUHCNG-01H90

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: In tray
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Color-mixing: VariWhite 3000K-6000K Forward Voltage: 3V-4V
Power: 60W LES: Φ11
Efficiency: 40lm/W CRI: 90Ra
Lumen: 2300lm-2700lm
High Light:

high power chip led

,

light emitting diode

Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter







Features for 60W VariWhite LEDs:



1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,





Specifications:



Code Color

Vf

(V)

If

(mA)



J-C

Φv

(lm)

Power

LES

(mm)

TX-1818WS600FC120-CUHCNG-01H90 WS 3.5-4.2V 3000 0.75 K/W 2300-2700 60 9 x 9



Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color
Values
Min. Typ. Max.
Luminous Flux φv W 650lm 750lm -
S 500lm 600lm -
W 650lm 750lm -
S 500lm 600lm -
Colour Temperature CCT W 5300K - 5800K
S 3000K - 3250K
Forward Voltage Vf   3.5V - 4.2V




Color Tunning White Multichip LED , 3000K - 6000K 2700LM 60W LED Emitter



Applications:

Film / Studio lighitng

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
