Full Color RGBW LED Light Engine 60W 2300lm 12V High Efficiency

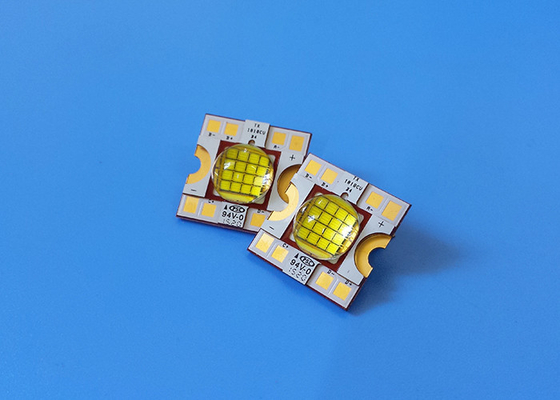

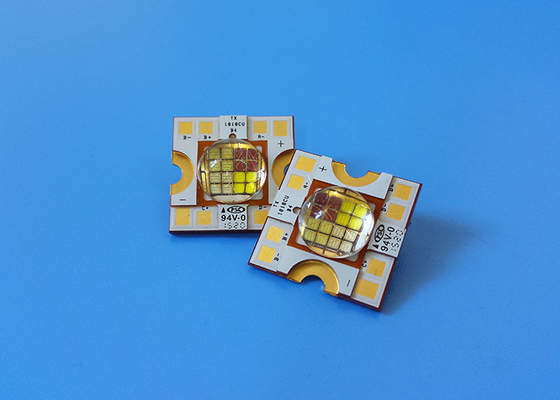

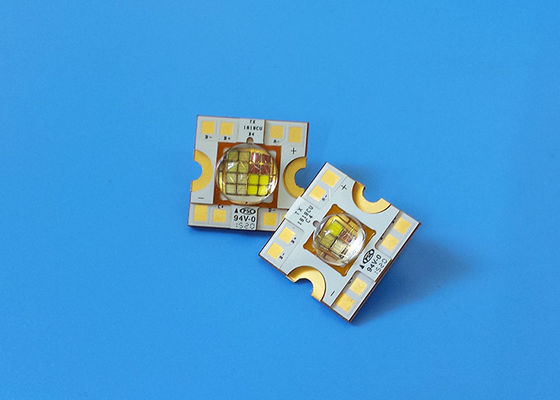

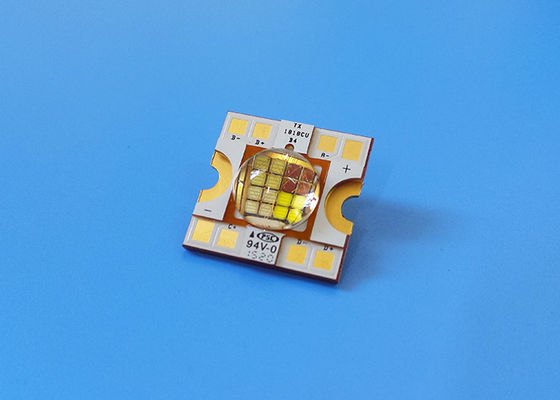

Large Image : Full Color RGBW LED Light Engine 60W 2300lm 12V High Efficiency

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 ROHS SGS
Model Number:	TX-1818RGBW60FC85-CUHCNG-01

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	In tray
Payment Terms:	Western Union, T/T, L/C

Contact Now

Detailed Product Description

Color-mixing:	RGBW	Forward Current:	1A
Forward Voltage:	12V - 16V	Power:	60W
LES:	Φ11	Beam Angle:	85 °
Lumen:	2300lm
High Light:	high power led array , led lighting engine

Full Color RGBW LED Light Engine 60W 2300lm 12V High Efficiency

Features for 60W RGBW LEDs:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,

Specifications:

Code

Color

(V)

(mA)

Rθ_J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW60FC120-CUHCNG-01

RGBW

12-16V

1000

0.75 K/W

1700-2000

9 x 9

Characteristics at If=1800mA (Ta=85°C)

Parameter	Symbol	Emitting Color	Values
			Min.	Typ.	Max.
Luminous Flux	φ_v	R	400lm	460lm	-
		G	520lm	580lm	-
		B	120lm	150lm	-
		W	700lm	800lm	-
Dominant Wavelength	λd	R	615nm	620nm	625nm
		G	515nm	520nm	525nm
		B	452nm	456nm	460nm
Colour Temperature	CCT	W	6500K	7500K	8500K
Forward Voltage	V_f	R	8V	10V	12V
		G	12V	14V	16V
		B	12V	14V	16V
		W	12V	14V	16V
