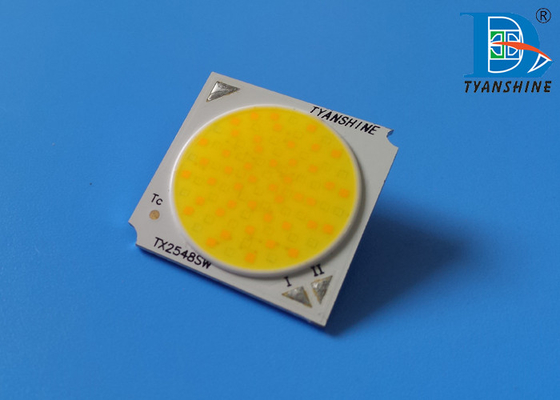

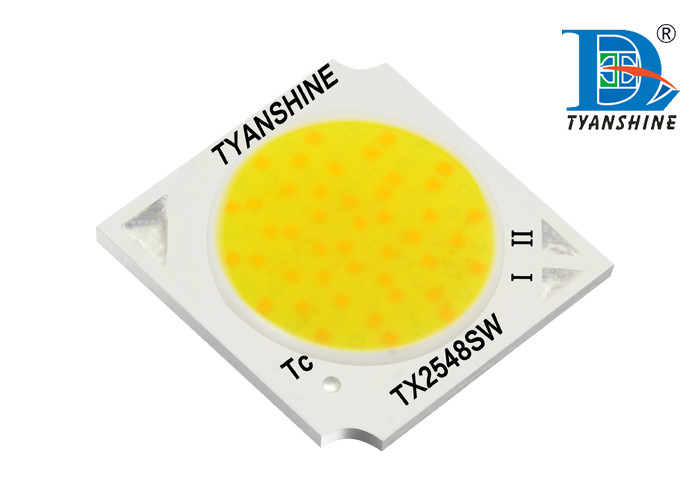

9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K

China 9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K supplier
9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K supplier 9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K supplier 9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K supplier

Large Image :  9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS, LM80 (Pending)
Model Number: TX-2548SW21A-2765V33-01H80

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: In plastic tray
Contact Now
Detailed Product Description
Input Voltage: 33V Input Current: 1600mA
Power: 48W CCT: 2700K-6500K
Lumen: 9800lm CRI: 80Ra / 95Ra
Dimension: 23.85*23.85mm LES: Diameter 21mm

Color Tunning Dual-white COB LEDs 48Watt Variable CCT 2700K-6500K LED COB







Advantages & Disadvantages:



TYANSHINE Tuneable White COB Other Brands' Tuneable COB
      48W COB LED Bi-color 2700K-6500K Tuneable White 95CRI CXA2540 COB LED Arrays            48W COB LED Bi-color 2700K-6500K Tuneable White 95CRI CXA2540 COB LED Arrays

1, Cross-distribution for the White and WarmWhite LED Dies;



2, Better performance of Color-mixing, without light strips or shadows;



3, Easy to adapt Lenses or reflectors



1, Strip arrays or Circular distribution of LED Dies;



2, Ununiformity of color-mixing, will be projected light strips or shadows;



3, Strictly requirements for Lenses/Relfectors






Features:



  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;



  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;



  • Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%



  • Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)






Specification:



Item Code Color IF
(mA)
VF
(V)

Power

(W)

CCT (K) CRI
(Ra)
Lumen
(lm)
LES
(mm)
TX-2548SW21A-2765V33-01H80 W 1600 30-36 48 6000-6700 80 5500 Φ21
S 1600 30-36 48 2700-2780 4300



(W - White, S - WarmWhite) , Ta = 25℃


9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K







Applications:



Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...



Photography lighting Fresnels lights






Housing / Lens / Holder Competitable with:



48W COB LED Bi-color 2700K-6500K Tuneable White 95CRI CXA2540 COB LED Arrays 48W COB LED Bi-color 2700K-6500K Tuneable White 95CRI CXA2540 COB LED Arrays 48W COB LED Bi-color 2700K-6500K Tuneable White 95CRI CXA2540 COB LED Arrays 48W COB LED Bi-color 2700K-6500K Tuneable White 95CRI CXA2540 COB LED Arrays

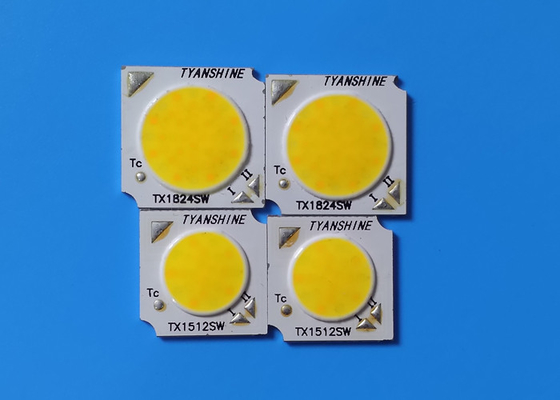

TX-1308 XLamp CXA 1304-1310 CLL022 -
TX-1512 XLamp CXA 1507-1512 - -
TX-1824 XLamp CXA 1820-1830 CLL032 Tiger Zenigata
GW6TGCBG4FD
TX-2548 XLamp CXA 2530-2540 - -

9800lm Dynamic white Cob Led 48Watt 33V CCT Changing 2700K-6500K
