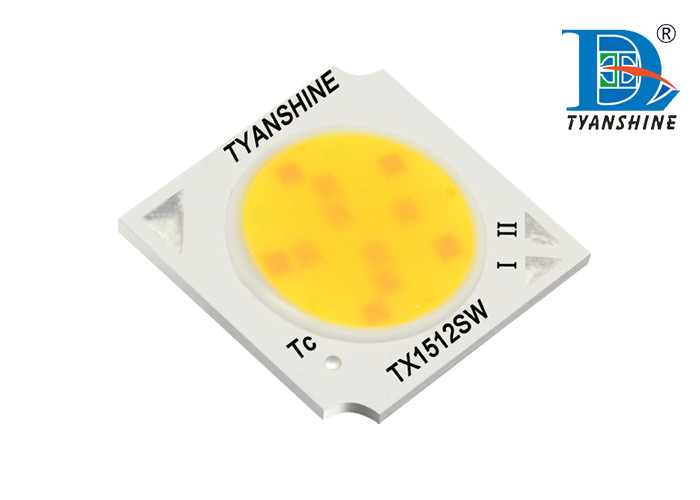

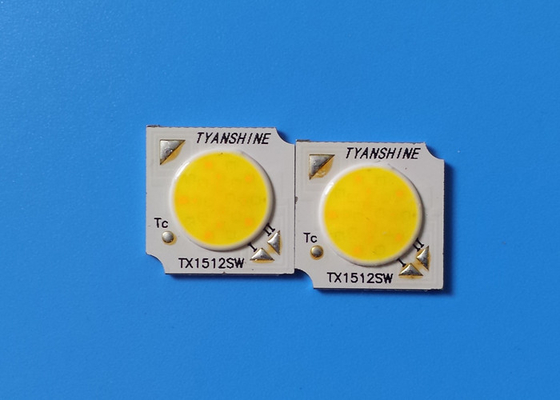

Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm

China Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm supplier
Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm supplier Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm supplier Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm supplier

Large Image :  Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS, LM80 (Pending)
Model Number: TX-1512SW11A-2765V33-01H80

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: In plastic tray
Contact Now
Detailed Product Description
Input Voltage: 33V Input Current: 400mA
Power: 12W CCT: 2700K-6500K
Lumen: 2500lm CRI: 80Ra / 95Ra

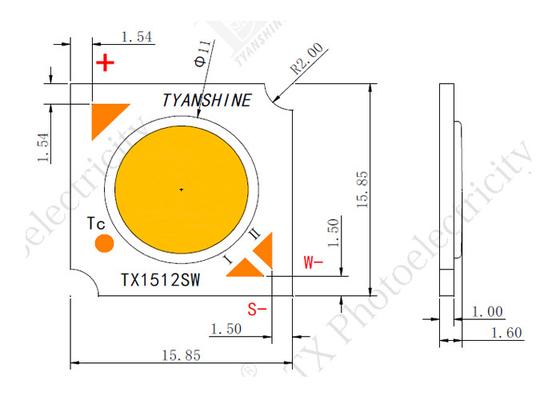

Dimension: 15.85*15.85mm LES: Diameter 11mm
High Light:

Tuneable White COB

,

cob smd led

Dual-white COB LED 12Watt 2700K-6500K Color Tunning CRI 80Ra 33V LED COB





Specification:



Item Code Color IF
(mA)
VF
(V)

Power

(W)

CCT (K) CRI
(Ra)
Lumen
(lm)
LES
(mm)
TX-1512SW11A-2765V33-01H80 W 400 30-36 12 6000-6700 80 1300 Φ11
S 400 30-36 12 2700-2780 1120



(W - White, S - WarmWhite) , Ta = 25℃


Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm



Features:



  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
  • Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
  • Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)



Applications:



Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...



Photography lighting Fresnels lights



Residential Lighting 2500lm Linear Cob Led 12W Diameter 11mm
