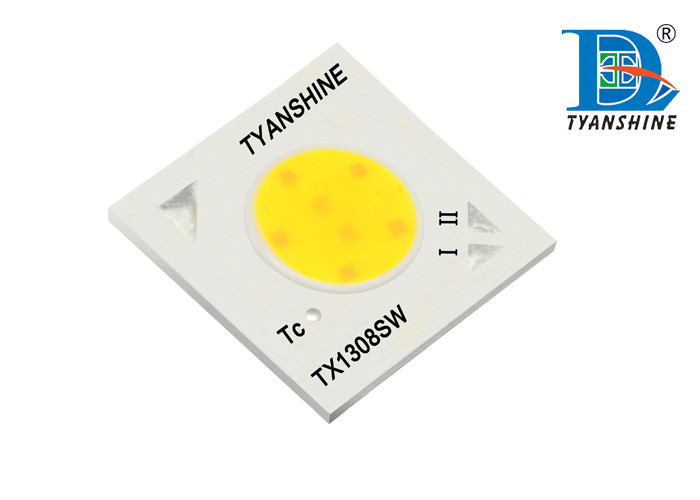

8W COB LED Chip 1500lm Cob Smd Led 13.85*13.85mm Dimension

China 8W COB LED Chip 1500lm Cob Smd Led 13.85*13.85mm Dimension supplier
8W COB LED Chip 1500lm Cob Smd Led 13.85*13.85mm Dimension supplier 8W COB LED Chip 1500lm Cob Smd Led 13.85*13.85mm Dimension supplier

Large Image :  8W COB LED Chip 1500lm Cob Smd Led 13.85*13.85mm Dimension

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS, LM80 (Pending)
Model Number: TX-1308SW07A-2765V33-01H80

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: In plastic tray
Contact Now
Detailed Product Description
Input Voltage: 33V Input Current: 250mA
Power: 8W CCT: 2700K-6500K
Lumen: 1500lm CRI: 80Ra / 95Ra
Dimension: 13.85*13.85mm LES: Diameter 7.5mm
High Light:

Tuneable White COB

,

cob smd led

Dual-white 8W COB LED 1500lm CCT Tunning 2700K-6500K LED COB CRI 80Ra





Specification:



Item Code Color IF
(mA)
VF
(V)

Power

(W)

CCT (K) CRI
(Ra)
Lumen
(lm)
LES
(mm)
TX-1308SW07A-2765V33-01H80 W 250 30-36 8 6000-6700 80 800 Φ7.5
S 250 30-36 8 2700-2780 700



(W - White, S - WarmWhite) , Ta = 25℃






Features:



  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
  • Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
  • Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)



Applications:



Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...



Photography lighting Fresnels lights
