Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm

China Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm supplier
Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm supplier Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm supplier Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm supplier Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm supplier

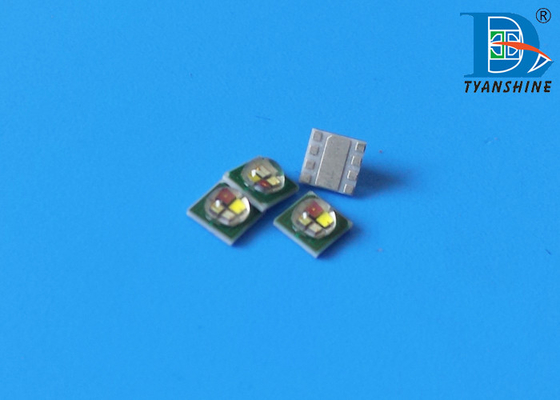

Large Image :  Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS
Model Number: TX-3535RGBW3FC120-OGVEND34-01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: In tape reel
Contact Now
Detailed Product Description
Power: 5W Voltage: 3V
Current: 350mA Package Size: 3.45*3.45mm
Lumen: 240lm Color: RGBW
Beam Angle: 120°

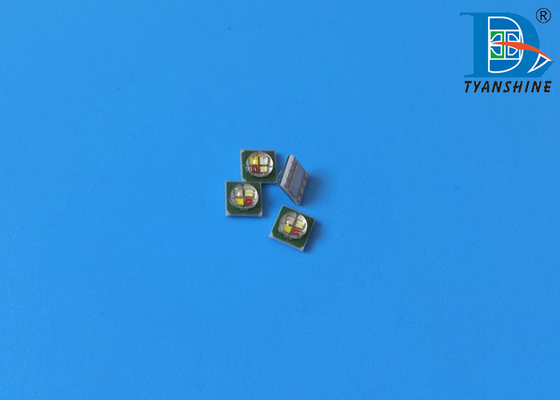

Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm







Key Features of the C3535 RGBW Package LEDs:



1, Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion, less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;



2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;



3, Anti-UV silicon domed lens, anti-aging and better light direction;



4,Long lifespan over 50,000 hrs,Smaller package size for luminaries manufactures.





Additional Services:

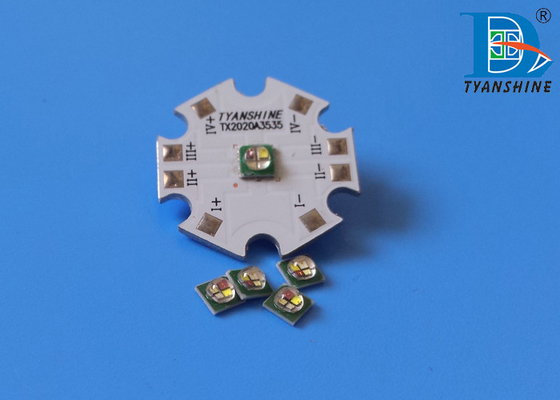

PCB design & making, LEDs soldering.

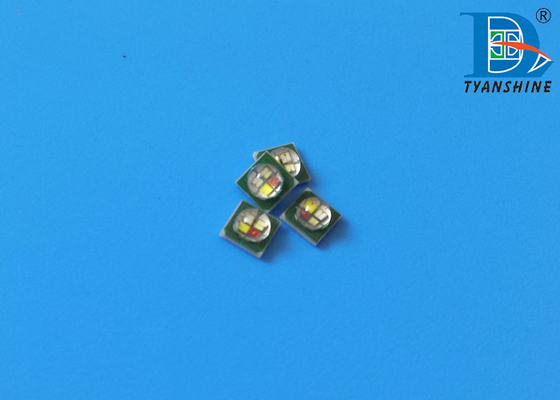

Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm





Drawing & Specifiation:

Ceramic SMD3535 XP-E size LEDs Smallest RGBW Package LED 5W 240lm

Item Code Color IF
(mA)
VF
(V)

λd (nm)

CCT (°K)

Beam Angle
(°)
Lumen
(lm)
LES
(mm)

TX-3535RGBW5FC120-

OGVEND34-01



(5W)

R 350 2.0-2.6 615-625 120 45-50 Φ2.8
G 350 3.0-3.4 518-528 80-85
B 350 3.0-3.4 450-458 15-17
W 350 3.0-3.4 5300-7000 85-90





























Appplications:



1, Outdoor Landscape illumination & Architectural lighting:



Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.





2, Entertainment lighting/Stage lighting



Matrix panel lights, Moving Heads panels, Par cans lights, Pixel Tubes ...
