Product Details:
Payment & Shipping Terms:
|
| Forward Voltage: | 2.9-3.3V | Warranty: | 2Year |
|---|---|---|---|
| Forward Current: | 350mA | Package Size: | SMD 3.45*3.45mm |
| Color: | Tunable White | Brightness: | High |
| Rohs Compliant: | Yes | CCT: | 1800K - 6000K |
| CRI: | 80 | Chip Material: | InGaN,AlGaInP,GaAs,Epistar |
| Wattage: | 1W X 2 | Chip Brand: | Cree |
| Viewing Angle: | 120 Degrees | ||
| Highlight: | power rgb led,rgb led array |
||

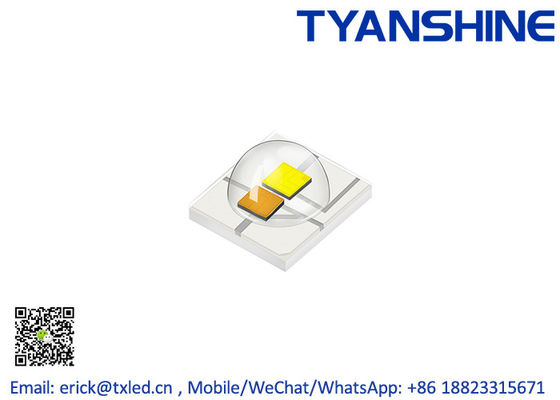

Smart lighting architecural illumination SMD3535 LEDs Tunable White 1800K-6000K
Features:
Package Dimensions:
Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbol | Ratings | Unit | |
| Forward Current | IF | 350 | mA | |
| Reverse Voltage | VR | Not designed for reverse operation |
V | |
| Power Dissipation | PD | W | 1225 | mW |
| A | 1225 | |||
| Junction Temperature | Tj | 150 | ℃ | |
| Electrostatic Discharge Threshold (ESD) | ESD | ESD sensitive device | V | |
| Storage Temperature | Tstg | -40~+70 | ℃ | |
| Operation Temperature | Topr | -30~+85 | ℃ | |
Electrical Optical Characteristics (Tc=25°C)
| Parameter | Symbol | Condition | Emitting Color |
Min. | Typ. | Max. | Unit |
| Luminous Flux | φv | If=300mA | W | 65 | 75 | 85 | lm |
| A | 27 | 35 | 45 | ||||
| Correlated Colour Temperature |
CCT | W | 4750 | 5400 | 6500 | K | |
| A | 1740 | 1850 | 2050 | ||||
| Color Rendering Index | Ra | W | 80 | 82.5 | 85 | - | |
| Peak Emission Wavelength |
λp | A | 590 | 593 | 596 | nm | |
| Dominant Wavelength | λd | A | 585 | 588 | 591 | ||
| Forward Voltage | Vf | W | 2.8 | 3.3 | 3.5 | V | |
| A | 2.8 | 3.3 | 3.5 | ||||
| Viewing Angle at 50﹪IV | 2θ1/2 | - | - | 120 | - | Deg | |
| Reverse Current | IR | - | - | - | - | 2.0 | μA |
| Thermal Resistance Junction to Case |
RθJ-C | - | - | - | 14.6 | - | K/W |
| Temperature Coefficient of Voltage |
V△F/T | - | - | -2 | - | mV/℃ |
Applications:
Entertainment lighting
Architectural lighting
Smart lighting
Commercial lighting
Office lighting
