Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays

China Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays supplier
Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays supplier Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays supplier

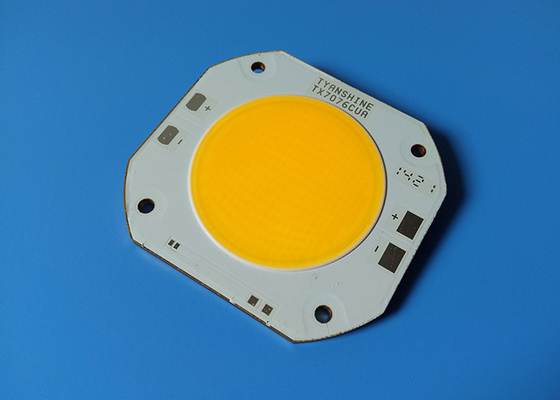

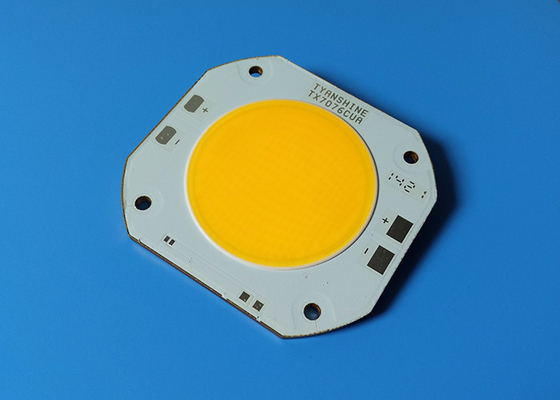

Large Image :  Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-7076W400D180CUY-B01H90

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Power: 400W Forward Voltage: 44-48V
Forward Current: 8A Color Temperature: 3000K
CRI: 95Ra LES: Φ52mm
Efficiency: 80lm/W COB Size: 70x76mm
High Light:

chip on board led

,

chip on board led

Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays







Features of COB LED Arrays:

  1. High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
  2. High power/high efficiency package
  3. Full spectrum White Color-mixing by RGBY
  4. Integraged packages, low luminous decay and long lifespan
  5. 3mm Copper MCPCB, fast heat-conductivity
  6. Easy installation, save cost



Specifications:





Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Values Units
Min. Typical Max.
Forward Voltage VF 40 42 44 V
Continuous Forward Current IF   8   A
Power Dissipation PD   400   W
Luminous Flux φV   28000   lm
Correlated Colour Temperature CCT 3000 3125 3250 K
Color Rendering Index Ra 90 95
LED Junction Temperature Tj   150
ElectrostaticDischarge Threshoid ESD   2000   V



Code Color

Vf

(V)

If

(A)

CCT

(K)

Φv

(lm)

Power

LES

(mm)

CRI

(Ra)

TX-7076W400D180CUY-C01H95

Warm White 44-48 8 3000-3300 28000 400 Φ52 ≥95

TX-7076W400D180CUY-B01H90

White 44-48 8 5000-5600 31000 400 ≥90





Applications:



Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting



Warm White 3000 K COB LED Array , 400W Multichip 80lm/W LED COB Arrays
