Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency

China Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency supplier
Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency supplier Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency supplier

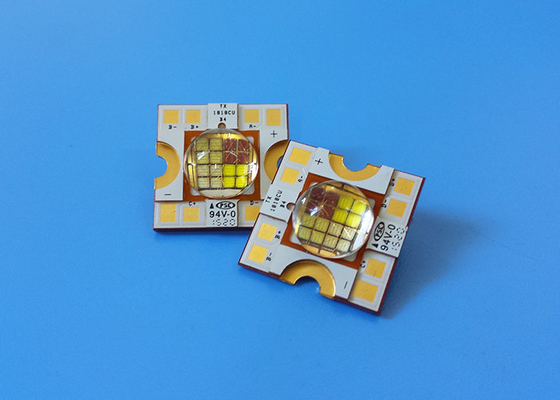

Large Image :  Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS SGS
Model Number: TX-1818RGBW60FC85-CUHCNG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: In tray
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Color-mixing: RGBW Forward Current: 1000mA
Forward Voltage: 12V - 16V Power: 60W
LES: Φ11 Beam Angle: 85 °
Lumen: 2300lm
Highlight:

high power chip led

,

multi chip led

Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency





Features for 60W RGBW LEDs:



1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,





Specifications:



Code Color

Vf

(V)

If

(mA)



J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW60FC120-CUHCNG-01 RGBW 12-16V 1000 0.75 K/W 1700-2000 60 9 x 9



Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color
Values
Min. Typ. Max.
Luminous Flux φv R 400lm 460lm -
G 520lm 580lm -
B 120lm 150lm -
W 700lm 800lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 8V 10V 12V
G 12V 14V 16V
B 12V 14V 16V
W 12V 14V 16V

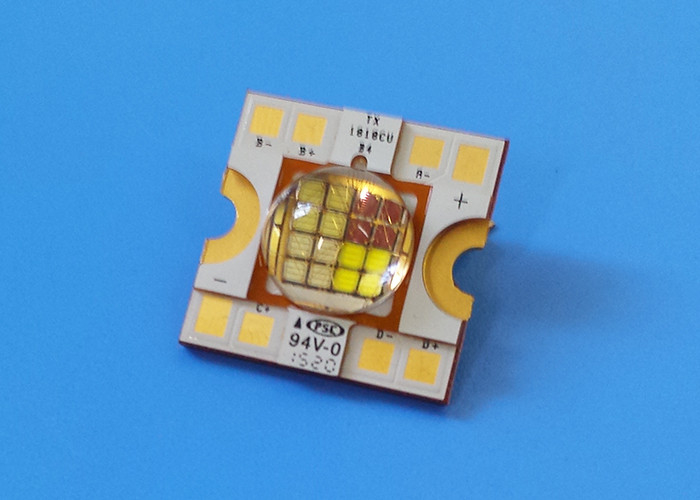

Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency



Applications:



Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting



Compact Multichip 1000mA 60W LEDs RGBW 2300lm 12V High Efficiency
