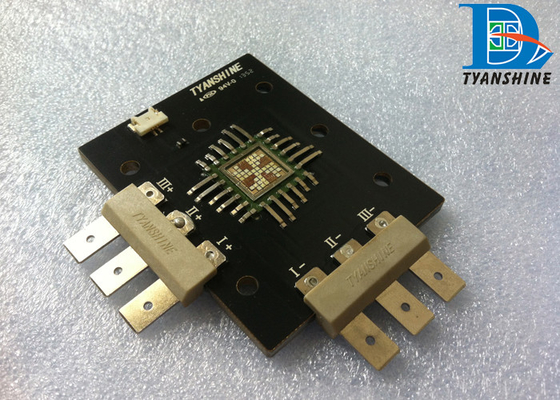

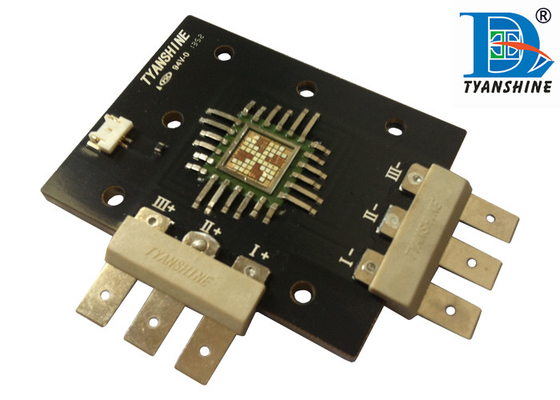

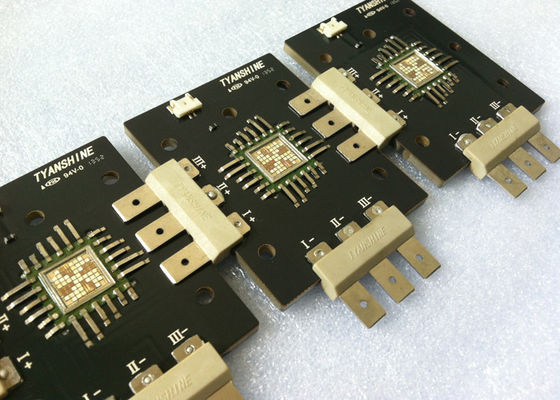

Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine

China Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine supplier
Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine supplier Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine supplier Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine supplier

Large Image :  Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine

Product Details:

Place of Origin: CN
Brand Name: Tyanshine
Certification: SGS RoHS
Model Number: TX-6066RGBW250FC120-NUVENG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD
Packaging Details: In Tray
Payment Terms: Western Union, L/C, T/T, Western Union
Supply Ability: 10, 000pcs/month
Contact Now
Detailed Product Description
Features: Thermoelectric Solution Chip: CREE Epileds Bidgelux
Color: RGBW Mixing Power: 250W
LES: Dia. 11mm Applications: Stage Lighting Projection

Color-mixing RGBW Multi Chip Led , 250W Projection Illumination LED Engine







Products’ Features:



1, Small LES, 5W/mm² , High Power and high light density for spot lighting,far distance

projection illumination



2, The latest Eutectic Flip-chip bonding with Cree Chips, Thermoelectric solution, fast heat-conductivity

between LEDs and MCPCB substrate



3, Unique Parallel and Serial connection of LED design, Lower Forward Current result in Lower heat-emission to enable longer lifespan



4, Average efficiency upto 40lm/W @Tj=85℃ with full power





Specifications:



Code Color Vf (V) If (A)

λd(nm)

CCT(K)

φv(lm) Power LES(mm)
TX-6066RGBW250FC120
-NUVENG-01
Red 7-10 5 610-622 600-750 40 9 x 9
Φ11
Green 9-13 5 520-530 1200-1500 55
Blue 9-13 5 452-460 400-500 55
White 9-13 5 6500-8500 2200-2600 55





Applications:



  • Entertainment spot/wash lighting
  • Architectural spot/wash lighting
  • Fiber coupled illumination
  • Effect lighting
  • Stage lighting Projection



Dimensions:



Integrated Multichip LED Engines RGBW 250Watt For Stage lighting
