Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm

China Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm supplier
Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm supplier Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm supplier

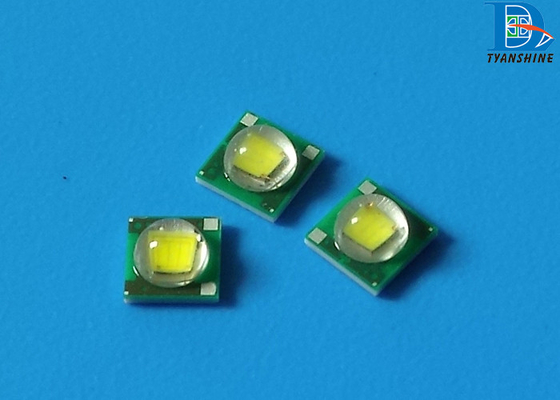

Large Image :  Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-3535W3FC120-OGVEND34-A03

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: In Reel
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 100000PCS/month
Contact Now
Detailed Product Description
Color: White Power: 3W
If: 700mA CCT: 4000-7000K
Chip Brand: Cree Lumen: 100lm -140lm
High Light:

smd led chip

,

smd led diode

Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm







Features:

  1. Small size,SMD Package with ceramic substrate
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,

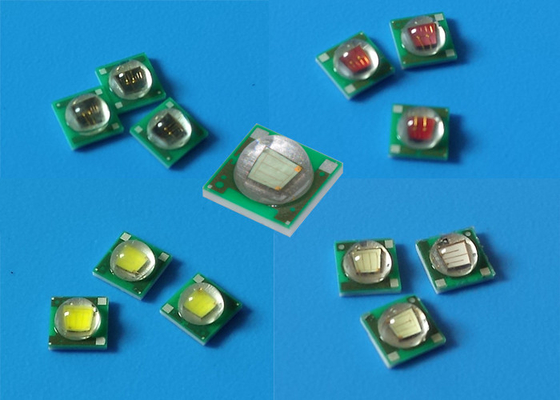

  6. Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)





Specifications:



Code Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) LES(mm)
TX-3535R3FC120-OGVEND34-03 Red 1.9-2.5 700 618-628nm 50-65lm Φ2.75
TX-3535G3FC120-OGVEND34-03 Green 2.8-3.6 700 520-530nm 80-110lm
TX-3535B3FC120-OGVEND34-03 Blue 2.8-3.6 700 456-468nm 19-31lm
TX-3535W3FC120-OGVEND34-A03 White 2.8-3.6 700 ≥7000 K 94-139lm
TX-3535Y3FC120-OGVCND34-01 Yellow 2.0-3.0 700 585-595nm 60-75lm
TX-3535P3FC120-OGVEZA72-01 Ultraviolet UV 3.0-3.6 700 380-400nm 1-1.5lm
TX-3535IR3FC120-OGVCND34-03

Infrared

IR

 1.7-1.9V 350 850-858nm 260-320mW





Package Dimensions:



Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm



Applications:



Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

Multi color 3Watt 700mA SMD LED Chip CREE XP-E White LEDs 140lm
