Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

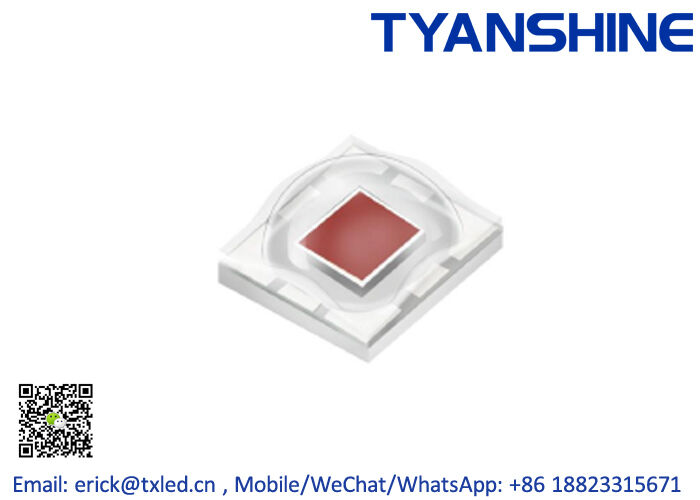

Large Image : Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-2020

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	R/G/B/L/A/C/W	Power:	3W
If:	1000mA	Package:	SMD2020
Substrate:	Ceramic
Highlight:	smd led chip , smd led diode

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Features:

Small size,SMD Package with ceramic substrate
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)

Specifications:

Code	Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm)	CRI
TX-2020R3VSA1-NG4DA-01	Red	2.1-2.5V	1000mA	620-625nm	60-80lm	/
TX-2020G3VSA1-NG4DA-01	Green	2.6-3.4V	1000mA	525-532nm	125-155lm	/
TX-2020B3VSA1-NG4DA-01	Blue	2.8-3.4V	1000mA	450-460nm 465-475nm	14-24lm 30-40lm	/
TX-2020W3VSA1-NG4DA-01	White	2.8-3.3V	1000mA	5700-7000K	135-165lm	70
TX-2020W3FSA1-NG4DA-01H80	Warm White	2.8-3.3V	1000mA	2950-3040K	120-150lm	80
TX-2020Y3VCA1-NG4DA-01	Yellow	2.0-2.6V	1000mA	589-596nm	45-55lm	/
TX-2020A3FSA1-NG4DA-01	PC-Amber	2.8-3.3V	1000mA	1750-1900K (586-590nm)	110-125lm	/
TX-2020L3FSA1-NG4DA-01	Lime	2.8-3.3V	1000mA	4030-4280K (565-568nm)	145-190lm	/

Package Dimensions:

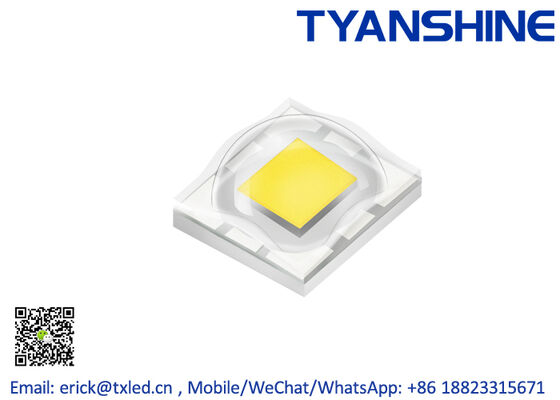

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Packing: 1000pcs per Reel

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Applications:

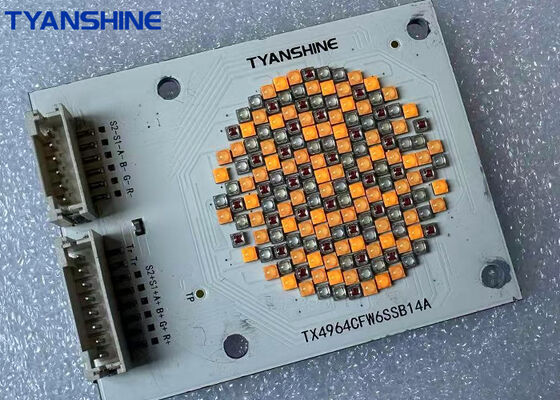

LED Module for Studio/Stage Ligting

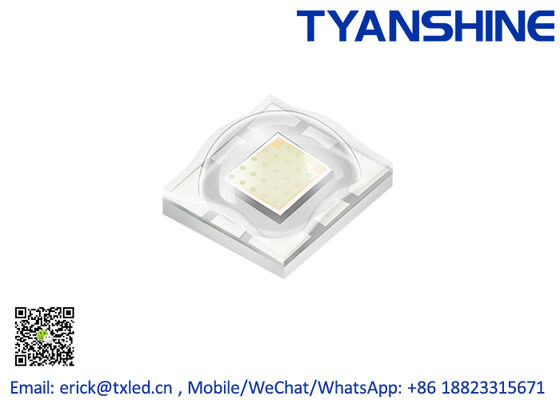

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights
