Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips

China Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips supplier
Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips supplier Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips supplier Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips supplier Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips supplier

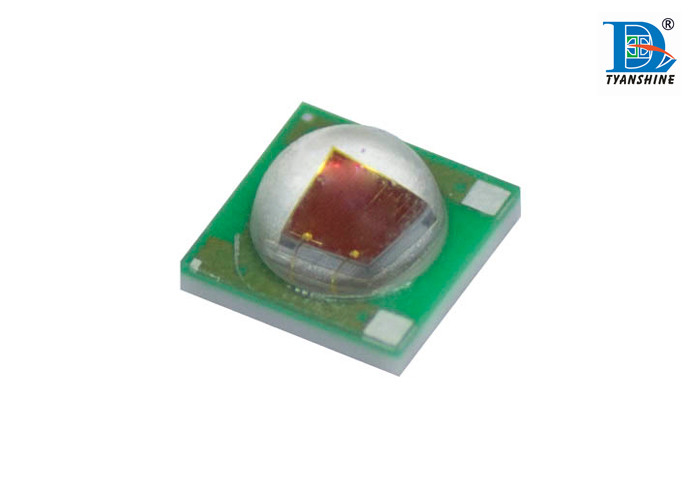

Large Image :  Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips

Product Details:

Place of Origin: CN
Brand Name: Tyanshine
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-3535R3FC120-OGVEND34-03

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: In Reel
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 100000PCS/month
Detailed Product Description
Highlight:

smd led chip

,

smd led diode

Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips



Infrared Red 1W 3W LED Diodes with Cree Chips for CCTV Products





Features:



  1. Small size
  2. Lower thermal resistance,higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Low expansion coefficient, high air tightness



Specifications:



Code Color Vf (V) If (mA) λd(nm)
CCT(K)
φv(lm) LES(mm)
TX-3535R3FC120-OGVEND34-03 Red 1.9-2.5 350 618-628 50-65 Φ2.75
TX-3535G3FC120-OGVEND34-03 Green 2.8-3.6 350 520-530 80-110
TX-3535B3FC120-OGVEND34-03 Blue 2.8-3.6 350 456-468 19-31
TX-3535W3FC120-OGVEND34-A03 White 2.8-3.6 350 ≥7000 94-139
TX-3535W3FC120-OGVEND34-B03 White 2.8-3.6 350 4000-7000 107-122
TX-3535W3FC120-OGVEND34-C03 WarmWhite 2.8-3.6 350 2700-4000 87-122
TX-3535W3FC120-OGVEND34-D03 WarmWhite 2.7-3.5 350 ≤2700 67-94





Applications:



LED Flashlight

Architectural lighting

Landscape lighting

Infrared monitoring CCTV products



Anti - UV Infrared Red 1W 3W LED Diodes 50 - 65lm With Cree Chips
