Product Details:
Payment & Shipping Terms:
|
Highlight: | white led diode,white led array |
---|

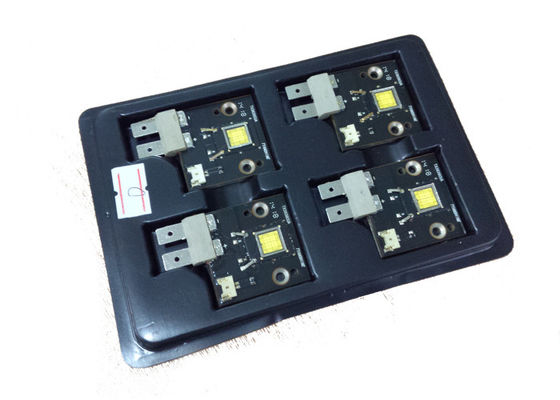

90 Watt 150 Watt 6500 - 8500K White LED Module for Stage Lighting
High-Density White LEDs Module 90W 150W for Stage Lighting GOBO/WASH/SPOT
Features & Advangates:
1, Small LES, 5W/mm²
2, Eutectic packages, Thermoelectric management, fast heat-conductivity
3, Special Parallel and Serial connection, Low If, higher Vf
4, Average efficiency upto 40lm/W @Tj=85℃ with full power
5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source
6, Quick on/off; Anti-poisonous or toxic, comply with RoHS
Specifications:
Code | Color |
Vf (V) |
If (A) |
CCT(K) |
Φv (lm) |
Power |
LES (mm) |
TX-3636W90FC120 -NUVENG-A01 |
White | 12-16 | 6.5 | 6500-8500 | 3600-4000 | 90 | 4.3 x 4.3 |
TX-3636W150FC120 -NUVENG-A01 |
White | 12-16 | 11 | 6500-8500 | 6000-6500 | 150 | 6.5 x 6.5 |
Applications:
Entertainment lighting
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
