Multi Chip Eutectic White LED Modules 90W 150W 250W with High Lumen Density

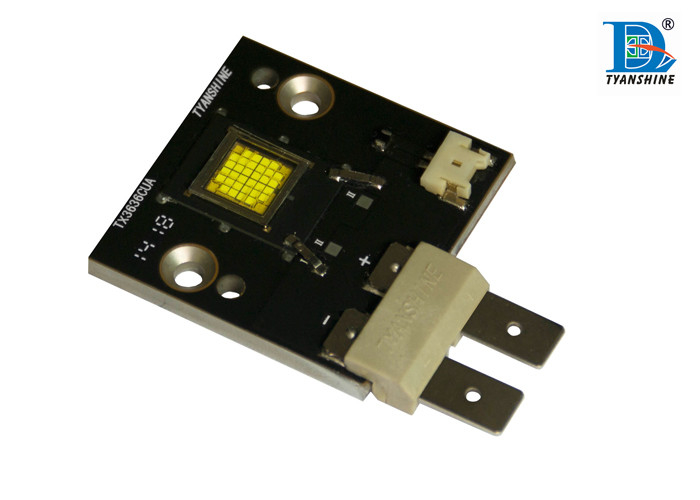

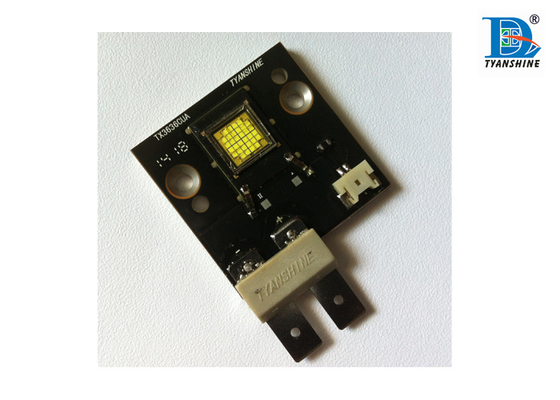

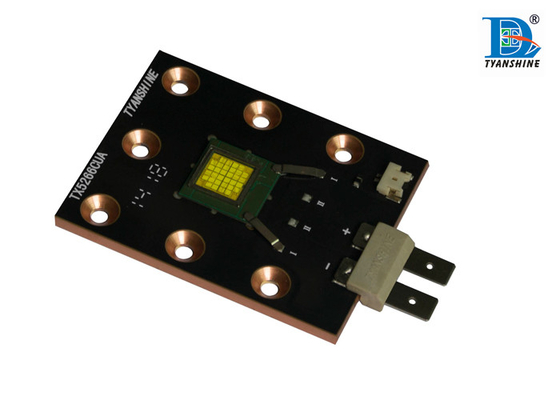

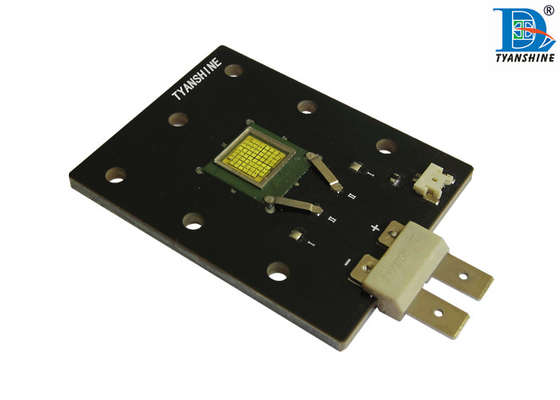

Large Image : Multi Chip Eutectic White LED Modules 90W 150W 250W with High Lumen Density

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-5266W250FC120-NUVENG-A01

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	In Tray
Delivery Time:	5-10 days
Payment Terms:	ExW
Supply Ability:	10000pcs/week

Contact Now

Detailed Product Description

High Light:	white led chip , white led array

High Light:

white led chip

white led array

Multi Chip Eutectic White LED Modules 90W 150W 250W with High Lumen Density

Features:

1, Small LES, 5W/mm²

2, Eutectic packages, Thermoelectric management, fast heat-conductivity

3, Special Parallel and Serial connection, Low I_f, higher V_f

4, Average efficiency upto 40lm/W @Tj=85℃ with full power

5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source;

6, Quick on/off; Anti-poisonous or toxic, comply with RoHS

Specifications:

Code	Color	Vf(V)	If(A)	CCT(K)	Φv (lm)	Power (Watt)	LES(mm)
Code	Color	Vf(V)	If(A)	CCT(K)	Φv (lm)	Power (Watt)	LES(mm)
TX-3636W90FC120-NUVENG-A01	White	12-16	6.5	6500-8500	3600-4000	90	4.3 x 4.3
TX-3636W150FC120-NUVENG-A01	White	12-16	11	6500-8500	6000-6500	150	6.5 x 6.5
TX-5266W250FC120-NUVENG-A01	White	12-16	18	6500-9500	10000-12500	250	9 x 9
