Product Details:
Payment & Shipping Terms:
|
| Power: | 30W | Color: | RGBWA / RGBW+UV |
|---|---|---|---|
| Current: | 500mA | Chip: | Epileds Cree |
| Applications: | LED Par Lights, | ||
| High Light: | led light diode,multicolor led diode |
||

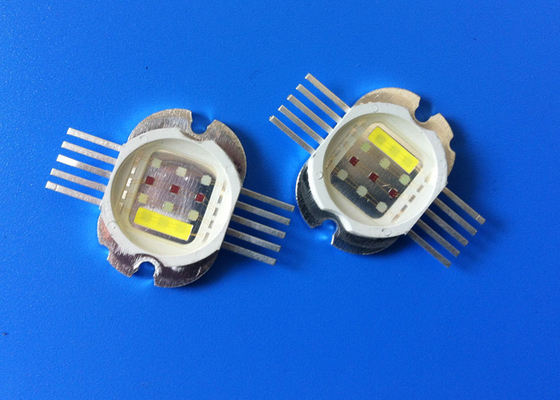

RGBWA Multicolor Led Diode , High Power 30Watt Multichip LED RGBW UV
Products’ Features:
Specifications:
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Value (Max.) | Unit | |
| LED Junction Temperature | Tj | 150 | ℃ | |
| Power Dissipation | PD | Y | 4500 | mW |
| B | 6000 | |||
| R | 4500 | |||
| G | 6000 | |||
| W | 6000 | |||
| Peak Forward Current | IFP | 1000 | mA | |
| Continuous Forward Current | IF | 500 | mA | |
| Electrostatic Discharge Threshoid | ESD | 2000 | ||
| Operating Temperature Range | Topr | -40 ~ +70 | ℃ | |
| Storage Temperature Range | Tspr | -40 ~ +100 | ||
Characteristics at If=2400mA (Ta=25°C):
| Parameter | Symbol | Color | Values | Unit | ||
| Min. | Typical | Max. | ||||
| Luminous Flux | φv | Y | 150 | 250 | - | lm |
| B | 100 | 150 | - | |||
| R | 200 | 250 | - | |||
| G | 300 | 350 | - | |||
| W | 300 | 380 | - | |||
| Viewing Angle at 50﹪IV | 2θ1/2 | - | - | 120 | - | Deg |
| Dominant Wavelength | λd | Y | 592 | 595 | 598 | |
| B | 462 | 465 | 468 | |||
| R | 620 | 623 | 626 | |||
| G | 522 | 525 | 528 | |||
| Correlated Colour Temperature | CCT | W | 6000 | 7000 | 8000 | K |
| Forward Voltage | Vf | Y | 6 | 7.5 | 9 | V |
| B | 9 | 10.5 | 12 | |||
| R | 6 | 7.5 | 9 | |||
| G | 9 | 10.5 | 12 | |||
| W | 9 | 10.5 | 12 | |||
| Thermal Resistance Junction to Case | RθJ-C | - | - | 0.5 | - | K/W |
| Temperature Coefficient of Forward Voltage | V△F/T | - | - | -2 | - | mV/℃ |
Applications:
Stage lighting, LED Par lights, LED Moving-head lights
Entertainment lighting
Architectural lighting
Landscape lighting
