COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm

Certification
Good quality Studio White COB LED for sales
Good quality Studio White COB LED for sales
I was very pleased to find your new products,I'm very interested in your new cob rgb cob rgbw 30w and 60w,and the new 70-120w 200-300W

—— Guillermo

Many of your products look specilized in the entertainament Studio/stage market.

—— Marcelo Diaz

Please keep me informed on any new product you have.We hope to have a nice pleasant, long cooperation.

—— Fausto Orsatti

I'm Online Chat Now

COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm

China COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm supplier
COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm supplier COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm supplier

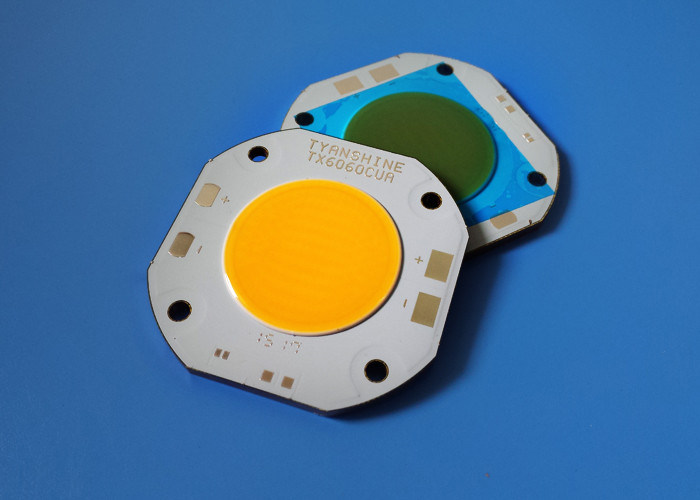

Large Image :  COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-6060W350D180CUY-C02AH95

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Power: 350W Forward Voltage: 45V
Forward Current: 7A Color Temperature: 3200°K Tungsten
CRI: 95Ra TLCI: 90
R9: 90 R12: 85
Efficiency: 75lm/W
High Light:

cob led module

,

chip on board led

COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm





Features:

  1. High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
  2. High power/high efficiency package
  3. Full spectrum White, wide wavelength band.
  4. Integraged packages, low luminous decay and long lifespan
  5. 3mm Copper MCPCB, fast heat-conductivity
  6. Easy installation, save cost



Specifications:





Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Values Units
Min. Typical Max.
Forward Voltage VF 42 45 48 V
Continuous Forward Current IF   7   A
Power Dissipation PD   350   W
Luminous Flux φV 20000 26000   lm
Correlated Colour Temperature CCT 2850 3000 3250 K
Color Rendering Index Ra 90 95
LED Junction Temperature Tj   150
ElectrostaticDischarge Threshoid ESD   2000   V



Code Color

Vf

(V)

If

(A)

CCT

(K)

Φv

(lm)

Power

LES

(mm)

CRI

(Ra)

TX-6060W350D180CUY-C02H95

Tungsten 42-48 7 2850-3250 20000-26000 350 Φ37 ≥95

TX-6060W350D180CUY-B02H90

Daylight 42-48 7 5000-5600 23000-28000 350 ≥95





Applications:



Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting



COB 350 Watt LED 95Ra CRI Tungsten 3200K Fresnel Light 26000lm
