Detailed Product Description

Features:	Low Voltage DC Operation	Power:	30W
Color:	RGBW	Current:	700mA
Chip:	Epileds Cree	Applications:	Stage Lighting
Highlight:	led light diode , multicolor led diode

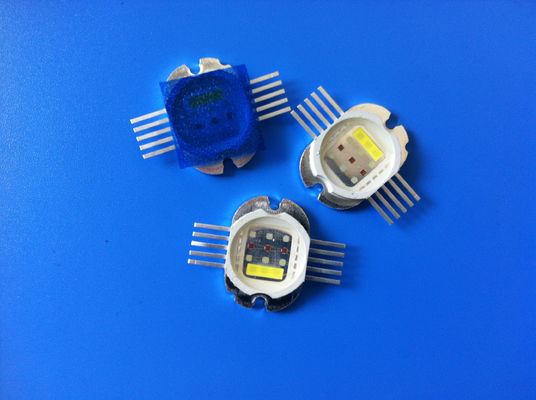

Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module

Products’ Features:

Specifications:

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol		Value (Max.)	Unit
LED Junction Temperature	T_j		150	℃
Power Dissipation	P_D			mW
		B	8400
		R	6400
		G	8400
		W	8400
Peak Forward Current	I_FP		1000	mA
Continuous Forward Current	I_F		700	mA
Electrostatic Discharge Threshoid	ESD		2000
Operating Temperature Range	T_opr		-40 ~ +70	℃
Storage Temperature Range	T_spr		-40 ~ +100	℃

Characteristics at If=2400mA (Ta=25°C):

Parameter	Symbol	Color	Values			Unit
Parameter	Symbol	Color	Min.	Typical	Max.	Unit
Luminous Flux	φv					lm
		B	140	160	-
		R	270	310	-
		G	400	450	-
		W	450	520	-
Viewing Angle at 50﹪IV	2θ_1/2	-	-	120	-	Deg
Dominant Wavelength	λd
		B	462	465	468
		R	620	623	626
		G	522	525	528
Correlated Colour Temperature	CCT	W	6000	7000	8000	K
Forward Voltage	V_f					V
		B	9	10.5	12
		R	6	7.5	9
		G	9	10.5	12
		W	9	10.5	12
Thermal Resistance Junction to Case	Rθ_J-C	-	-	0.5	-	K/W
Temperature Coefficient of Forward Voltage	V△F/T	-	-	-2	-	mV/℃
