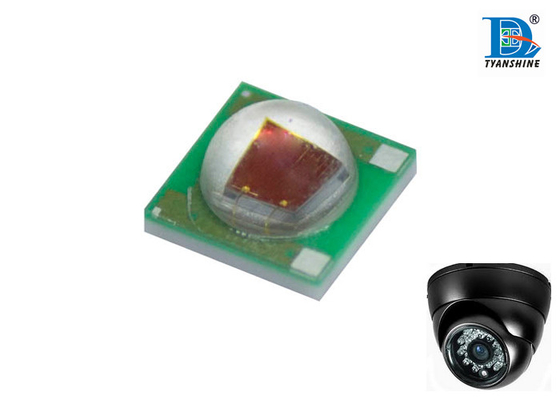

Royal XP - E SMD LED Diode

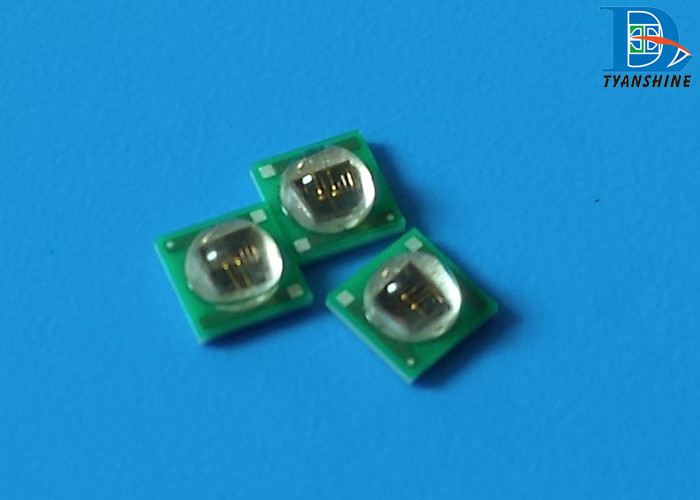

IR Infrared SMD LED Diode

Certification

I was very pleased to find your new products,I'm very interested in your new cob rgb cob rgbw 30w and 60w,and the new 70-120w 200-300W

—— Guillermo

Many of your products look specilized in the entertainament Studio/stage market.

—— Marcelo Diaz

Please keep me informed on any new product you have.We hope to have a nice pleasant, long cooperation.

—— Fausto Orsatti

I'm Online Chat Now

Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED

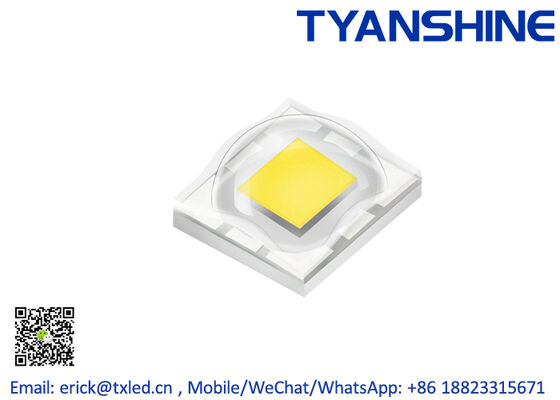

Large Image : Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-2020R8

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	R/G/B/A/C/L	Power:	8W
If:	2000mA	Package Size:	SMD2020
Substrate:	Ceramic
Highlight:	smd led chip , smd led diode

Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED

Features:

Small size,SMD Package with ceramic substrate
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)

Specifications:

Code	Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm)	Thermal Resistance
TX-2020R8VCA1-NG4DA-01A	Red	2.0-2.6V	2000mA	618-625nm	170-200lm	4.5 K/W
TX-2020G8VCA1-NG4DA-01A	Green	2.9-3.6V	2000mA	525-533nm	260-305lm	4.1 K/W
TX-2020B8VCA1-NG4DA-01A	Blue	2.8-3.6V	2000mA	446-454nm 466-474nm	37-42lm 75-85lm	4.1 K/W
TX-2020C8VCA1-NG4DA-01A	Cyan	2.8-3.6V	2000mA	484-492nm	140-160lm	4.1 K/W
TX-2020A8VCA1-NG4DA-01A	PC-Amber	2.8-3.6V	2000mA	1750-1900K (586-590nm)	200-230lm	4.1 K/W
TX-2020L8VCA1-NG4DA-01A	Lime	2.8-3.6V	2000mA	4030-4280K (565-568nm)	370-430lm	4.1 K/W

Package Dimensions:

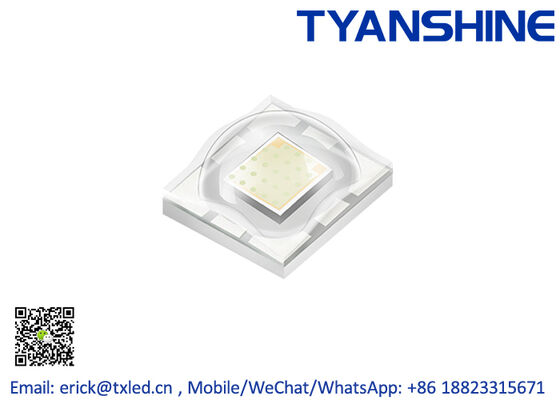

Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED

Applications:

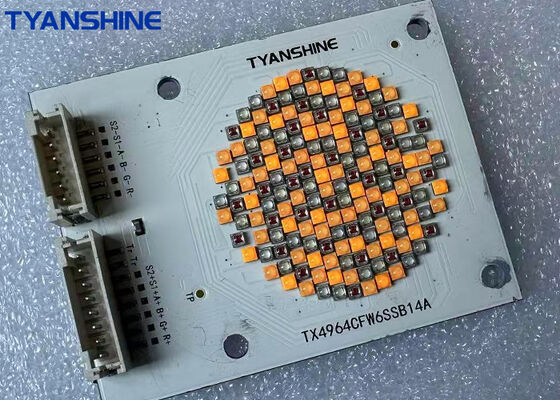

LED Module for Studio/TV/Theater Lighting

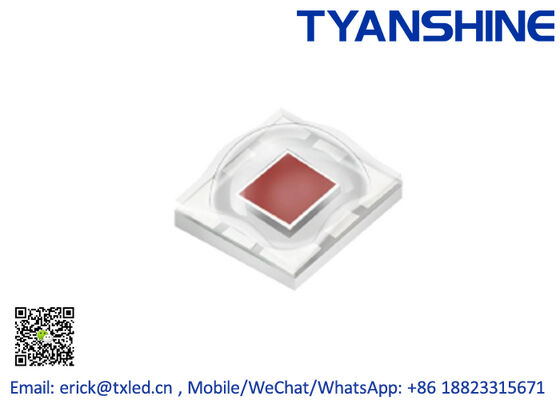

Ceramic SMD2020 LEDs 8Watt Red Green Blue PC-Amber Lime Cyan 2000mA RGBLAC LED

Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights
