45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters

China 45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters supplier
45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters supplier 45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters supplier 45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters supplier 45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters supplier

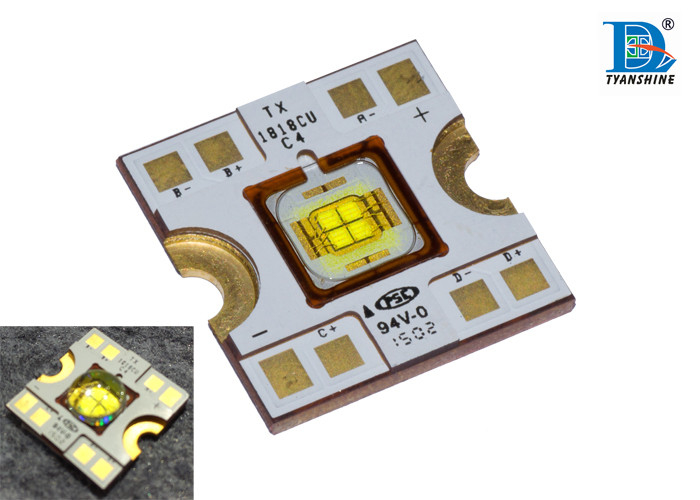

Large Image :  45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-1818W45FC120-CUHCNG-A01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: In Tray
Supply Ability: 5000pcs/Month
Contact Now
Detailed Product Description
Chip: Cree Flip-chip Power: 45Watt
VF: 30-34V Lumen: 3100-3400lm
CCT: 6500K-8500K LES: 9x9mm
High Light:

led light module

,

led lighting engine

45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters







Brief Introduction of LED Modules:



  1. High Brightness with CREE Flip-chip LEDs, Quality assured LED Components for Entertainment Lighting products;
  2. Eutectic bonding to make sure the fast conductivity of heat, it's aim to the lumen maintenance;
  3. Small Light Emiting surface(LES) to enhance the light density;
  4. Using copper MCPCB to carry the LED chips, the LEDs can be installed directly to the heat sinks.

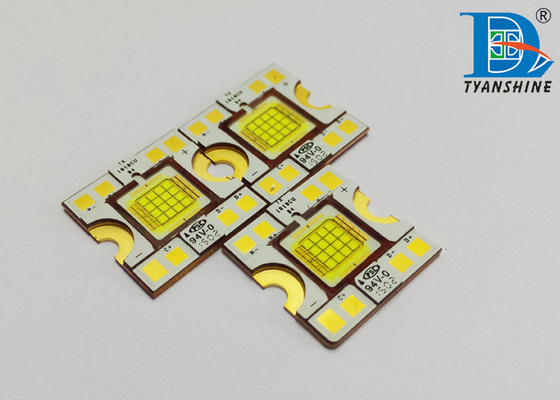

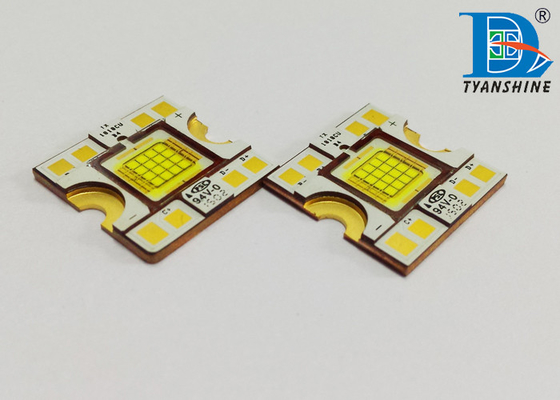

          45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters



Specifications:



Absolute Maximum Ratings at Ta=85℃



Item Code





TX-1818W45FC120-CUHCNG-A01



Parameter Symbol Value Unit
LED Junction Temperature Tj 150
Power Dissipation PD 45 W
Continuous Forward Current IF 1.5 A
ElectrostaticDischarge Threshoid ESD 2000 V

Characteristics at If= 2.2A (Ta=85°C):

Parameter Symbol Values Units
Min. Typical Max.
Luminous Flux φV 3100 3400 - lm
Viewing Angle at 50﹪IV 1/2 - 120 - degree
Forward Voltage Vf 30 32 34 V
Correlated Colour Temperature CCT 6500 7500 8500 K
Thermal Resistance Junction to Case J-C - 0.4 - K/W



Package Dimensions:

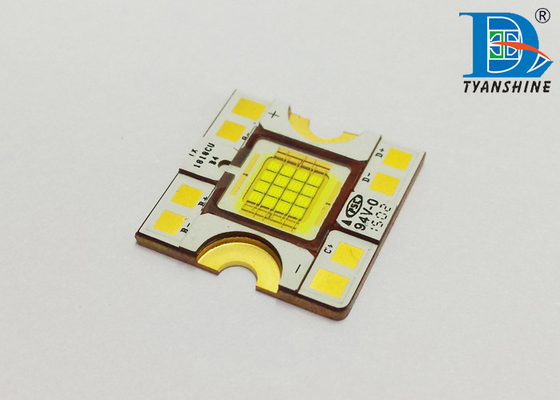

             45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters



Applications:



Entertainment Lighting - LED Moveing-Heads Beam & Spot washing

Architectural illumination

Medical illumination
