4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array

China 4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array supplier
4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array supplier 4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array supplier 4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array supplier 4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array supplier

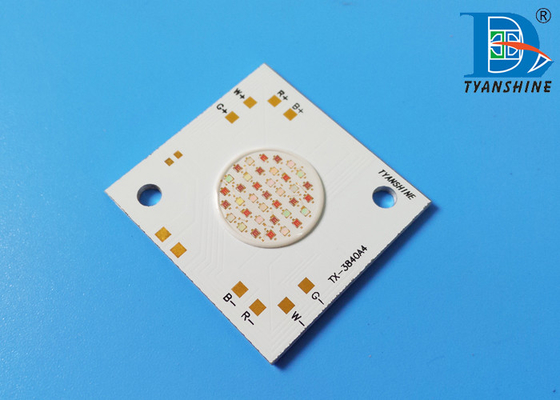

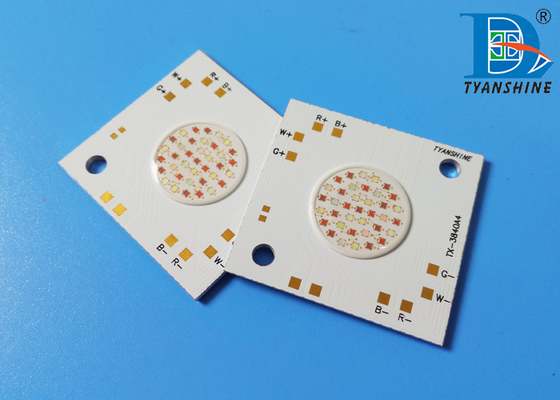

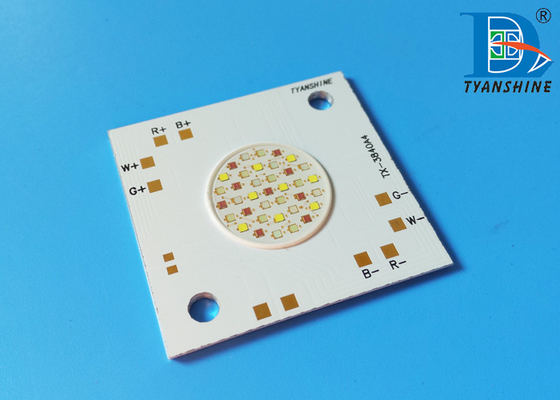

Large Image :  4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-3840RGBW80D180-001

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW,FOB,CIF, T/T, Western Union, L/C
Supply Ability: 100, 000pcs/month
Contact Now
Detailed Product Description
Color: RGBW / RGBA Power: 80W
Forward Voltage: 20V-30V Forward Current: 600 MA
LES: Diameter 19.7mm
High Light:

rgb led chip

,

rgb power led

4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array







Product Specifications:



Item Code Chip Material Lens
Color
Emitting Color
TX-3840RGBW80D180-001 Red Green Blue White Yellow(Amber) Water
Clear
RGBW
AlGaInP GaInN GaInN GaInN AlGaInP



Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Value(Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation Pd R 15600 mW
G 18000
B 18000
W 18000
Continuous Forward Current IF 600 mA
ElectrostaticDischarge Threshoid ESD 2000 V



Characteristics at If=600mA (Ta=25°C):

Parameter Symbol Emitting
Color
Values Units
Min. Typical Max.
Luminous Flux φV R 520 560 - lm
G 900 1000 -
B 250 270 -
W 1150 1300 -
Viewing Angle at 50﹪IV 1/2 - - 120 - °
Dominant Wavelength λd R 620 625 630 nm
G 522 525 532
B 458 460 468
Correlated Colour Temperature CCT White 6500 7000 7500 K





Features:

  1. Various color-mixing effect, no light spot
  2. Interlaced & even light array distribution of 4in1 RGBW/RGBA colors, pure and well-distributed light for each
  3. Adaptable for various angle of Lens and reflectors
  4. Variety of power selections for different applications
  5. Compact structure of light source, a simple shape for easy installation
  6. COB Package type,easy for assembling



Applications:



  1. Entertainment lighting, Stage Lighting
  2. Commercial lighting
  3. Architectural illumination Landscape lighting
  4. Decoration lighting
  5. Aquarium,Fountain illumination



Package Dimension:



4IN1 COB RGBW LED Array , 80Watt Stage Lighting RGB LEDs Array
