Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter

China Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter supplier
Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter supplier Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter supplier

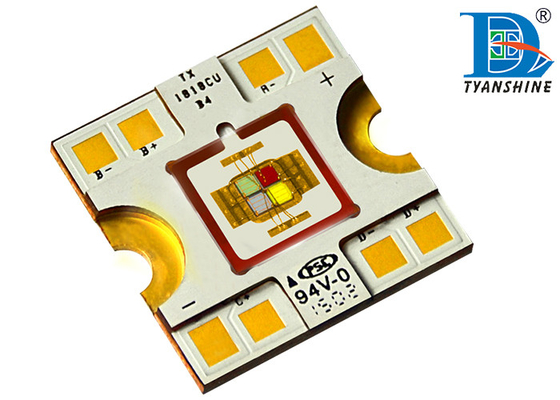

Large Image :  Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS SGS
Model Number: TX-1818RGBW30FC120-CUHCNG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: In tray
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Color-mixing: RGBW Forward Current: 1800mA
Forward Voltage: 2-4V Power: 30W
LES: Φ11 Dimension: 18 * 18mm
PCB Base: Copper
High Light:

rgb led chip

,

led light module



Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter







Features for 60W RGBW LEDs:



1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,





Specifications:



Code Color

Vf

(V)

If

(mA)



J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW60FC120-CUHCNG-01 RGBW 2-4V 1800 0.75 K/W 750-900 30 9 x 9



Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color
Values
Min. Typ. Max.
Luminous Flux φv R 190lm 220lm -
G 210lm 230lm -
B 55lm 65lm -
W 330lm 360lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 2.4V - 3.2V
G 3.2V - 4.0V
B 3.2V - 4.0V
W 3.2V - 4.0V

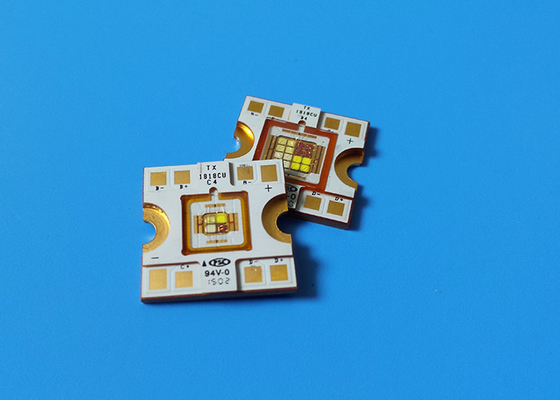

Stage RGBW LED Arrays 30W LED Light Module High Flux Density LED Emitter



Applications:



Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
