Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays

China Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays supplier
Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays supplier Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays supplier Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays supplier Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays supplier

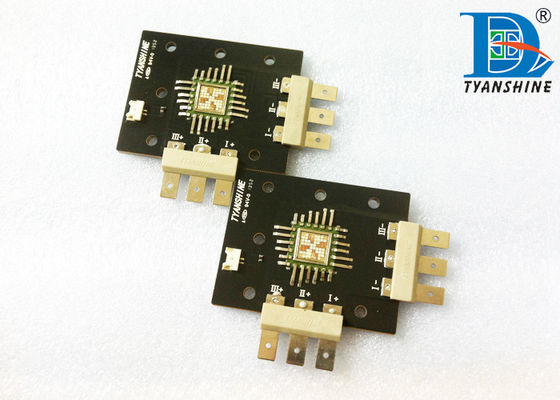

Large Image :  Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS
Model Number: TX-5266RGB250FC120-NUVENG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs/week
Contact Now
Detailed Product Description
Color: RGB Chip: Vertical Chips
Vf: 12V If: 5A
Light Density: 5W/mm² Package Size: 52x66mm
High Light:

high power chip led

,

multi chip led

Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays







Features:



1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Average efficiency upto 40lm/W @Tj=85℃ with full power;



4, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,



5, Multi color RGB and RGBW, excellent color-mixing.





Specifications:



Code Color Vf (V) If (A)

λd(nm)

CCT(K)

φv(lm) Power LES(mm)

TX-5266RGB250FC120

-NUVENG-01

Red 8-12 5 615-625 1000-1200 52

9 x 9

Φ11

Green 12-16 5 520-530 2000-2500 72
Blue 12-16 5 455-465 700-760 72



Ta=85℃

Parameter Symbol Value (Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation PD R 52 W
G 72
B 72
Continuous Forward Current IF 5 A
Forward Voltage Vf R 8 10 12 V
G 12 14 16
B 12 14 16
ElectrostaticDischarge Threshoid ESD 2000 V



If= 5 A Ta=85°C:

Parameter Symbol Emitting
Color
Values Units
Min. Typical Max.
Luminous Flux φv R 1000 1200 - lm
G 2000 2500 -
B 700 760 -
Viewing Angle at 50﹪IV 1/2 - 115 - Degree
Peak Emission Wavelength λp R 625 630 635 nm
G 510 515 520
B 458 460 462
Dominant Wavelength λd R 615 620 625 nm
G 520 525 530
B 455 460 465
Thermal Resistance Junction to
Case
J-C - - 0.1 - K/W



Dimensions:



                          Architectural Lighting Multichip LED 300 W 5A 12V RGB LED Arrays



Applications:



• Entertainment
• Architectural Lighting
• Medical Lighting
• Spot Lighting
• Fiber Coupled Illumination
• Displays and Projection
