RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter

China RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter supplier
RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter supplier RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter supplier RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter supplier

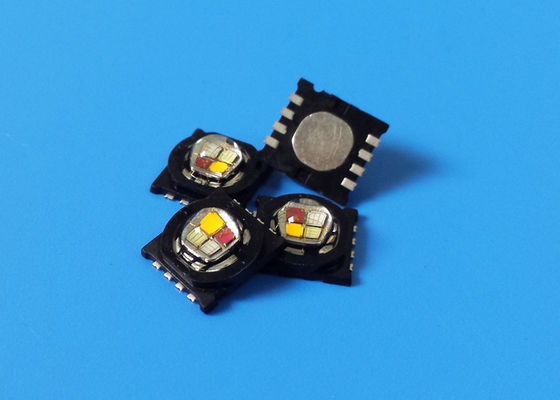

Large Image :  RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-RBWG15B120-001

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: USD
Packaging Details: In plastic Tube or Reel
Supply Ability: 100K / month
Contact Now
Detailed Product Description
Color-mixing: RGB+White Power: 15W
Current: 1000mA Amber: 585nm-587nm
Red: 620nm-630nm Green: 520nm-530nm
Blue: 450nm-460nm
High Light:

rgb led chip

,

led light module

RGB PCAmber 585nm LED Arrays , Multichip 15W LEDs Diode Emitter







Features of RGB-PCAmber LEDs:



  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance




Specifications:



Code Color Vf (V) If (mA) λd(nm) φv(lm) Power LES(mm)
TX-RBAG15B120-001 Red 2.5-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
Amber 3.2-3.8 1000 585-587 160-170



Parameter Symbol Values Units
Min. Typical Max.
Continuous Forward Current IF - - 1000 mA
Forward Voltage VF R 2.5 2.8 3.2 V
G 3.2 3.5 3.8
B 3.2 3.5 3.8
A 3.2 3.5 3.8
Luminous Flux  φv R 170 205 - lm
G 200 240 -
B 40 55 -
A 160 170 -
Dominant Wavelength λd R 618 623 628 nm
G 520 525 530
B 450 455 460
A 585 587 -




RGBW LED dimensions:



15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm




Typical Electrical / Optical Characteristics Curves:

(25℃ Ambient Temperature Unless Otherwise Noted)



15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm






Applications:



  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection




Packing details:

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm
