400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip

China 400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip supplier
400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip supplier 400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip supplier 400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip supplier 400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip supplier

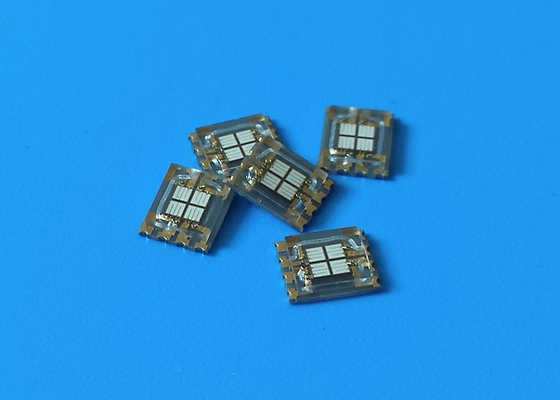

Large Image :  400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip

Product Details:

Place of Origin: CN
Brand Name: Tyanshine
Certification: ISO9001:2008 SGS RoHS
Model Number: 5060P10FC120-NUVEZG-01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: In Reel
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 100000PCS/month
Contact Now
Detailed Product Description
Color: UV Wavelength: 400nm
Current: 700mA Voltage: 3.2V
Lumen: 6lm - 10lm Dimension: 5*6mm
High Light:

high power uv led

,

ultraviolet led

400nm UV LED Diode 10W SMD Ultra Violet LEDs 3D Printing LED







Features of SMD UV LEDs:



  1. Small size,SMD Package with ceramic substrate
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)



380nm-400nm UltraViolet LED Specifications:





Item Code Color

VF (V)

IF (mA)

λd (nm)

φv (lm)

LES

(mm)

5060P10FC120-NUVEZG-01

UV /

UltraViolet

3.2V-3.8V 700mA 398nm-402nm 6lm-10lm 2.1x2.1




Dimension of SMD5060 High Density UV LEDs:

400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip





Applications for UV LEDs:



Ink Curing / Resin Curing

Counterfeit Detection

Portable Fluorescence Excitation

Lithography

Disinfection / sterilization

UV Curing, 3D printing



400nm SMD UV LED Diode 10W Ultra Violet LEDs 3D Printing LED Chip
