Product Details:
Payment & Shipping Terms:
|
Power: | 400Watt | Voltage: | 44V-48V |
---|---|---|---|
Current: | 8A | Color Temperature: | 5600°K |
CRI: | 95Ra | LES: | Φ52mm |
Lumen: | 30000lm | COB Dimension: | 70*76mm |
Highlight: | chip on board led,chip on board led |

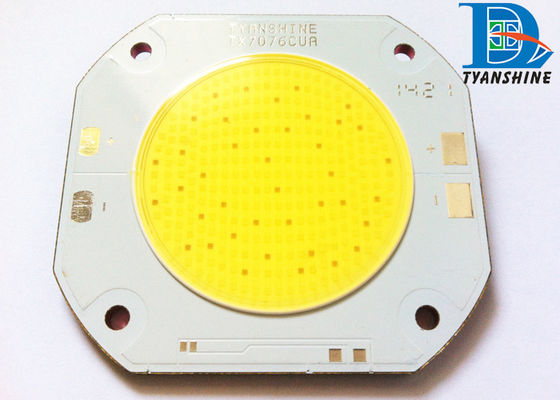

5600°K Fresnel COB Led Array Daylight 400W LED CoB Arrays 90Ra CRI
Features:
Specifications:
Code | Color |
Vf (V) |
If (A) |
CCT (K) |
Φv (lm) |
Power |
LES (mm) |
CRI (Ra) |
TX-7076W400D180CUY -C01H95 |
Warm White | 42-48 | 6.5-8.5 | 3000-3300 | 20000-28000 | 400 | Φ52 | ≥95 |
TX-7076W400D180CUY -B01H90 |
White | 42-48 | 6.5-8.5 | 5000-5600 | 24000-32000 | 400 | ≥90 |
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | Values | Units | ||
Min. | Typical | Max. | |||
Forward Voltage | VF | 44 | - | 48 | V |
Continuous Forward Current | IF | 8 | A | ||
Power Dissipation | PD | 400 | W | ||
Luminous Flux | φV | 28000 | 32000 | lm | |
Correlated Colour Temperature | CCT | 5000 | 6000 | 7000 | K |
Color Rendering Index | Ra | 90 | 95 | ||
LED Junction Temperature | Tj | 150 | ℃ | ||
ElectrostaticDischarge Threshoid | ESD | 2000 | V |
Applications:
Photography / TV / Film equipment luminaires
Fresnels lights
Entertainment stage/studio lighting
Architectural lighting
