SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip

China SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip supplier
SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip supplier SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip supplier

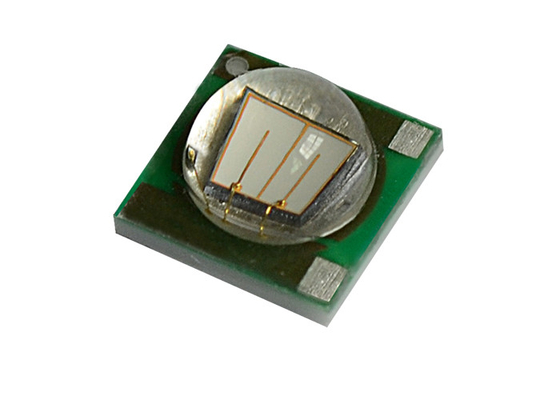

Large Image :  SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-3535P3FC120-OGHCNA72-01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: In Reel
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 100000PCS/month
Contact Now
Detailed Product Description
Color: UV Power: 1W - 3W
If: 700mA Vf: 3.0-3.6V
Wavelength: 380-400nm Lumen: 1-1.5lm
Beam Angle: 120 Degree Size: SMD3535
Highlight:

high power uv led

,

ultraviolet led



SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip







Features:

  1. Small size,SMD Package with ceramic substrate
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)



Specifications:



Absolute Maximum Ratings at Ta=25℃

Parameter Symbol MAX. Unit
LED Junction Temperature Tj 150 ℃
Power Dissipation PD 2380 mW
Peak Forward Current
(1/10 Duty Cycle, 0.1ms PulseWidth)		 IFP 1000 mA
Continuous Forward Current IF 700 mA
Reverse Voltage VR 5 V
ElectrostaticDischarge Threshoid ESD 2000 V
Operating Temperature Range Topr -20 to +70 ℃
Storage Temperature Range Tspr -30 to +100 ℃


If=350mA ,Vr=5V (Ta=25°C):



Parameter Symbol Values Units
Mix. Typical Max.
Luminous Flux φv 0.3 1 - lm
Viewing Angle at 50﹪IV 2θ1/2 - 120 - °
Forward Voltage Vf 3.2 3.3 3.4 V
Peak Emission Wavelength λp 394 397 400 nm
DominantWavelength λd 380 390 400 nm
Spectral Line Half-Width △λ 20 25 30 nm
Reverse Current IR - - 10 μA
Thermal Resistance Junction to Case RθJ-C - 8 - K/W



Package Dimensions:



SMD3535 High Power UV LED 700mA 3W Ultraviolet LEDs 380nm UV-A LED Chip

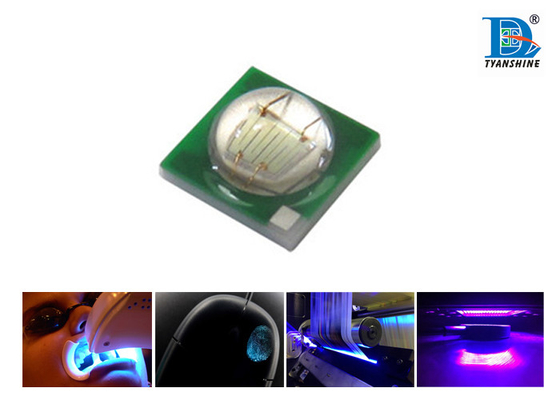

Applications:



Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

UV Curing, 3D pringing
