CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w

China CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w supplier
CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w supplier CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w supplier CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w supplier CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w supplier

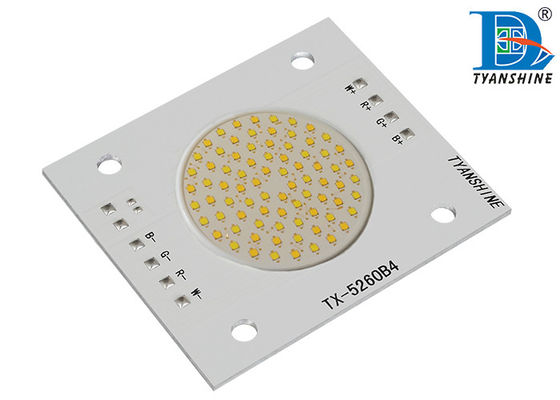

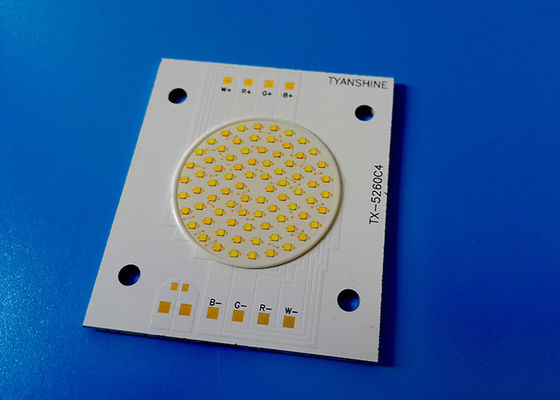

Large Image :  CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-5260WS200D180-001

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW,FOB,CIF, T/T, Western Union, L/C
Supply Ability: 100, 000pcs/month
Contact Now
Detailed Product Description
CCT: 3000K - 6000K Power: 200W
Forward Current: 1500mA LES: Diameter 32.8mm
COB Dimension: 52*60mm Lumen: 10000-12000lm
CRI: Ra95 + R9: 90
High Light:

chip on board led

,

cob led module



CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w



Features:



  1. Excellent effect of color-mixing, CCT Tunable COB LEDs 2700K-6000K
  2. Interlaced & even light array distribution for 3 colors, pure and well-distributed light for each
  3. Adaptable for various angle of Lens and reflectors
  4. Variety of power selections for different applications
  5. COB Package LED Arrays, high performance Heat emitting Al. PCB substrate









Product Specifications:


Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Value(Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation Pd W1 50 W
W2 50
S1 50
S2 50
Continuous Forward Current IF 1500 mA
ElectrostaticDischarge Threshoid ESD 2000 V



Characteristics at If=1200mA (Ta=25°C):

Parameter Symbol Emitting
Color
Values Units
Min. Typical Max.
Luminous Flux φV W1 2800 3200 - lm
W2 2000 3200 -
S1 2200 2400 -
S2 2200 2400 -
Forward Voltage Vf W1 30 - 34 V
W2 30 - 34
S1 30 - 34
S2 30 - 34
Color Temperature CCT W1 5300 - 5800 °K
W2 5300 - 5800
S1 3000 - 3250
S2 3000 - 3250
CRI Ra 95









Applications:



  1. Entertainment lighting
  2. Theatre / Cine Fresnels Light
  3. Commercial lighting
  4. Architectural illumination Landscape lighting
  5. Decoration lighting





Package Dimension:



CCT Tunable Chip COB Led High CRI 90RA High Power COB Led 20w
