Product Details:
Payment & Shipping Terms:
|
Color-mixing: | Bi-color White + WarmWhite | Forward Voltage: | 3V-4V |
---|---|---|---|
Power: | 60W | LES: | Φ11 |
Dimension: | 18 * 18mm | CRI: | 90Ra |
Highlight: | multi chip led,light emitting diode |

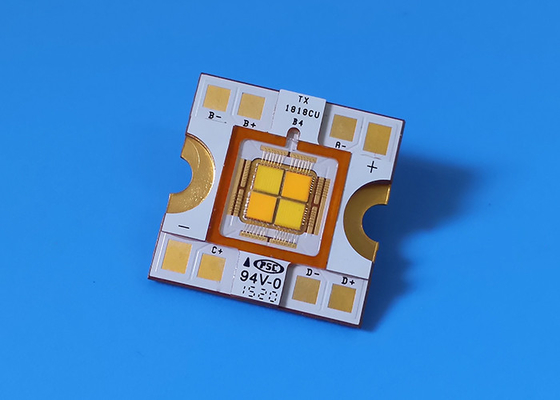

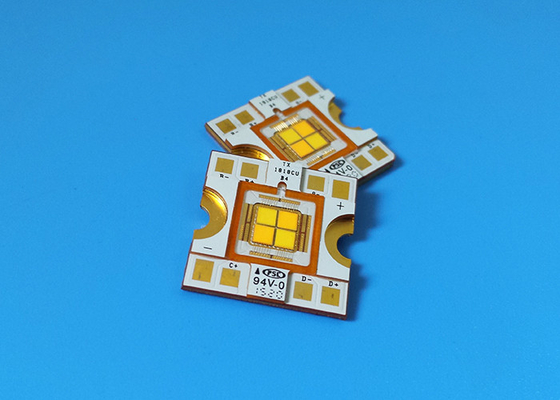

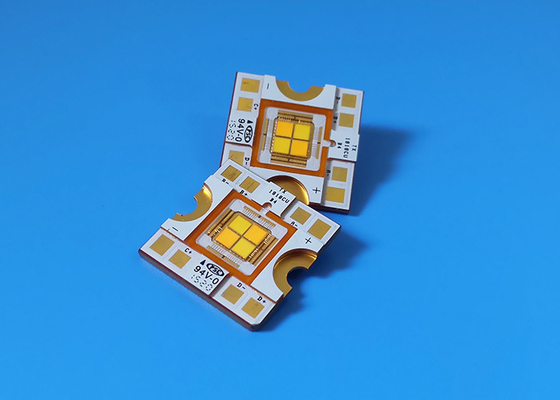

Bi - Color Multichip Light Emitting Diode 60W Color Tunning 3000K - 6000K
Features for 60W RGBW LEDs:
1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam
2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance
3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,
Specifications:
Code | Color |
Vf (V) |
If (mA) |
RθJ-C |
Φv (lm) |
Power |
LES (mm) |
TX-1818WS600FC120-CUHCNG-01H90 | WS | 3.5-4.2V | 3000 | 0.75 K/W | 2300-2700 | 60 | 9 x 9 |
Characteristics at If=1800mA (Ta=85°C)
Parameter | Symbol | Emitting Color |
Values | |||
Min. | Typ. | Max. | ||||
Luminous Flux | φv | W | 650lm | 750lm | - | |
S | 500lm | 600lm | - | |||
W | 650lm | 750lm | - | |||
S | 500lm | 600lm | - | |||
Colour Temperature | CCT | W | 5300K | - | 5800K | |
S | 3000K | - | 3250K | |||
Forward Voltage | Vf | 3.5V | - | 4.2V | ||
Applications:
Film / Studio lighitng
Entertainment lighting, Projection lights
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
Fiber optic lighting
