Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle

China Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle supplier
Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle supplier Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle supplier Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle supplier Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle supplier

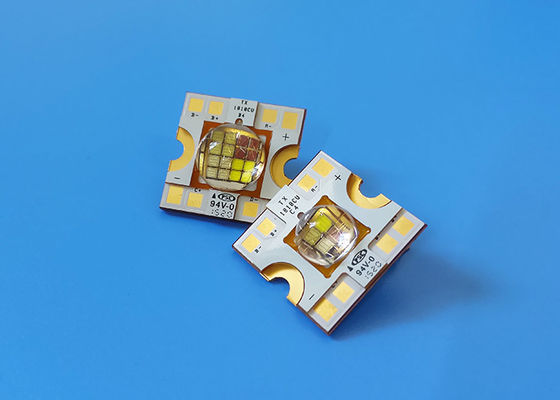

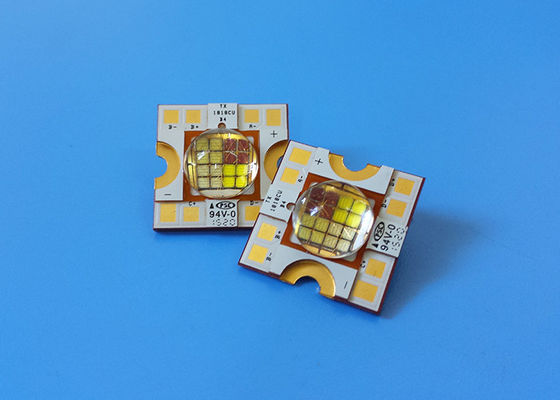

Large Image :  Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS SGS
Model Number: TX-1818RGBW60FC85-CUHCNG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: In tray
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Color: RGBW Current: 1A
Voltage: 12V - 16V Power: 60 Watt
LES: Φ11 Beam Angle: 85 °
Lumen: 2300lm
Highlight:

multi chip led

,

light emitting diode

Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle





Features for 60W RGBW LEDs:



1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,





Specifications:



Code Color

Vf

(V)

If

(mA)



J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW60FC120-CUHCNG-01 RGBW 12-16V 1000 0.75 K/W 1700-2000 60 9 x 9



Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color
Values
Min. Typ. Max.
Luminous Flux φv R 400lm 460lm -
G 520lm 580lm -
B 120lm 150lm -
W 700lm 800lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 8V 10V 12V
G 12V 14V 16V
B 12V 14V 16V
W 12V 14V 16V





Applications:



Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting

Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle

Fiber Optic Small LES High Power Chip Led Multichip RGBW LED 85° Beam Angle
