Product Details:
Payment & Shipping Terms:
|
Color: | White 6000K-8000K | Voltage: | 30V |
---|---|---|---|
Current: | 1.5A | Power: | 45 Watt |
Efficiency: | 80lm/W | Beam Angle: | 85° / 120° |
Highlight: | high power chip led,multi chip led |

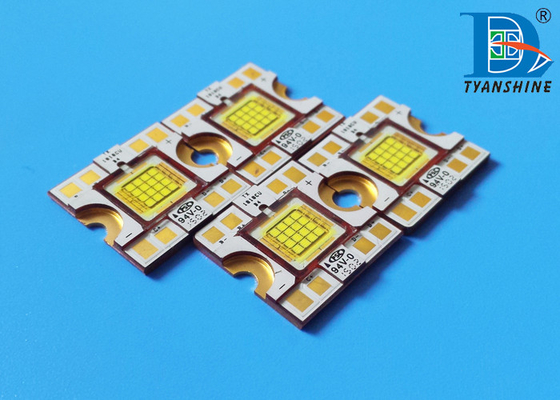

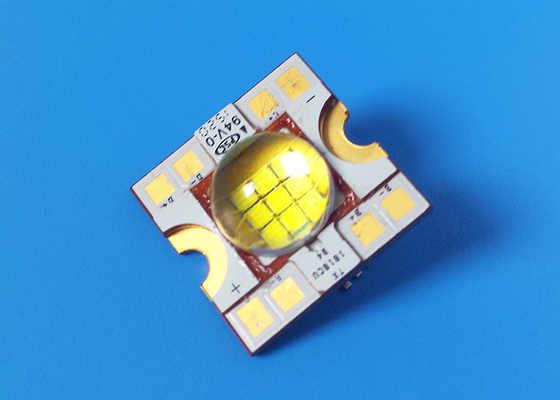

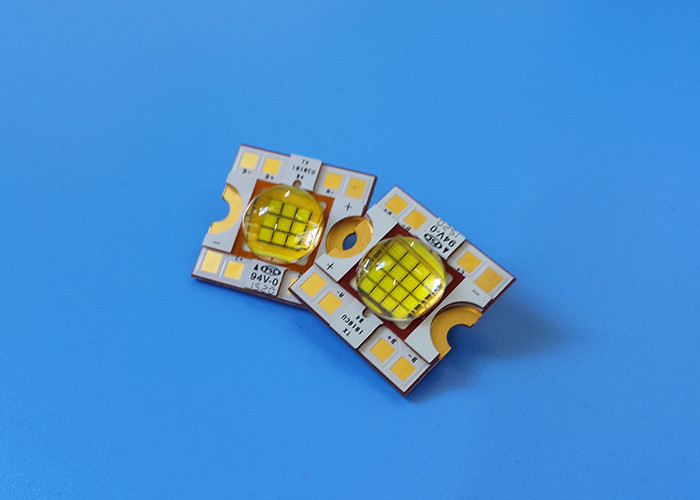

Mini 45 Watt Multichip LED 1.5A 80lm / W For Entertainment Lighting
Features / Multichip LED Modules:
Power selections :
Item Code | VF | IF | Power | Lumen | Viewing Angle |
TX-1818W10FC65-CUHCNG-A01 | 3.2-4.0V | 1.8A | 10W | 525-550lm | 65° |
TX-1818W20FC65-CUVCNG-A01 | 3.4-4.0V | 5A | 20W | 1500-1700lm | 65° |
TX-1818W30FC120-CUHCNG-A01 | 13-17V | 1.8A | 30W | 1600-1700lm | 120° |
TX-1818W45FC120-CUHCNG-A01 | 30-34V | 1.5A | 45W | 3100-3400lm | 120° |
TX-1818W60FC120-CUHCNG-A01 | 28-32V | 2.2A | 60W | 4400-4800lm | 120° |
Specifications White 60W LED Array:
Absolute Maximum Ratings at Ta=85℃
Item Code
|
TX-1818W60FC120-CUHCNG-A01
|
||
Parameter | Symbol | Value | Unit |
LED Junction Temperature | Tj | 150 | ℃ |
Power Dissipation | PD | 60 | W |
Continuous Forward Current | IF | 2.2 | A |
ElectrostaticDischarge Threshoid | ESD | 2000 | V |
Characteristics at If= 2.2A (Ta=85°C):
Parameter | Symbol | Values | Units | ||
Min. | Typical | Max. | |||
Luminous Flux | φV | 4400 | 4800 | - | lm |
Viewing Angle at 50﹪IV | 2θ1/2 | - | 120 | - | degree |
Forward Voltage | Vf | 28 | 30 | 32 | V |
Correlated Colour Temperature | CCT | 6500 | 7500 | 8500 | K |
Thermal Resistance Junction to Case | RθJ-C | - | 0.2 | - | K/W |
Mechanical Dimensions:
Applications:
Entertainment Lighting
Projection illumination - Projectors
Architectural illumination
Medical illumination
