Product Details:
Payment & Shipping Terms:
|
Lumen: | 9500lm | CCT: | 5000K - 8000K |
---|---|---|---|
Power: | 150W | Voltage: | 12-16V |
Current: | 6.5A | LES: | 11mm |
CRI: | 90Ra | ||
Highlight: | high power led array,led lighting engine |

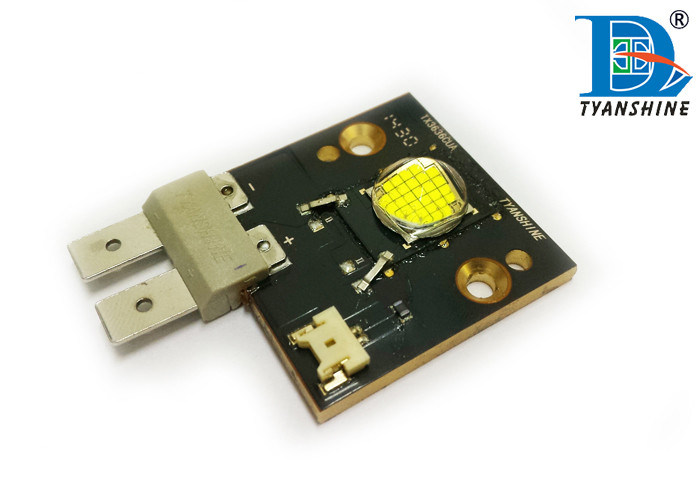

Medical Illumination 150W LED Engine White 5000K CRI 90Ra LED Emitter
Features of the White LED:
1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for
Moving head lights.
2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance
3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.
Specifications:
Code | Color |
Vf (V) |
If (A) |
CCT(K) |
Φv (lm) |
Power |
LES (mm) |
TX-3636W90FC120 -NUVENG-A01 |
White | 12-16 | 6.5 | 6500-8500 | 3600-4000 | 90 | 4.3 x 4.3 |
TX-3636W150FC120 -NUVENG-A01 |
White | 12-16 | 11 | 6500-8500 | 6000-6500 | 150 | 6.5 x 6.5 |
Ta=85℃
Parameter | Symbol | Value (Max.) | Unit |
LED Junction Temperature | Tj | 150 | ℃ |
Power Dissipation | PD | 150 | W |
Continuous Forward Current | IF | 11 | A |
ElectrostaticDischarge Threshoid | ESD | 2000 | V |
If=11 A (Ta=85°C)
Parameter | Symbol | Values | Unit | ||
Min. | Typical | Max. | |||
Luminous Flux | φV | 8500 | 9500 | - | lm |
Viewing Angle at 50﹪IV | 2θ1/2 | - | 115 | - | Degree |
Forward Voltage | Vf | 12 | 14 | 16 | V |
Colour Temperature | CCT | 6500 | 7500 | 8500 | K |
Thermal Resistance Junction to Case | RθJ-C | - | 0.2 | - | K/W |
Typical Electrical / Optical Characteristics Curves
Applications:
Package: In Plastic Tray (4 pcs)
