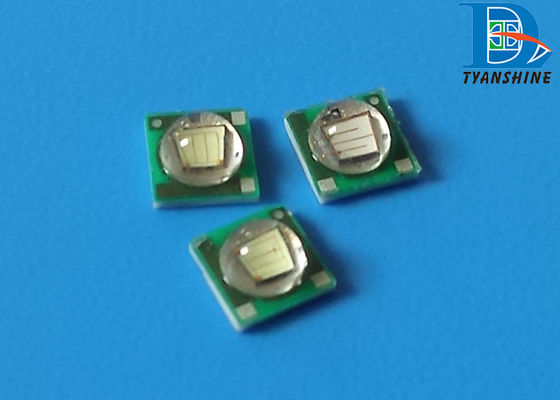

700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp

China 700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp supplier
700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp supplier 700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp supplier

Large Image :  700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-3535P3FC120-OGVEZA72-01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: In Reel
Delivery Time: 5-10 days
Payment Terms: ExW, FOB, CIF
Supply Ability: 100000PCS/month
Contact Now
Detailed Product Description
Color: UV / UltravioleT Power: 1W - 3W
If: 700mA Vf: 3.0-3.6V
Wavelength: 380-400nm Lumen: 1-1.5lm
Beam Angle: 120 Degree Package: SMD
High Light:

smd led diode

,

3535 smd led

700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp





Features:

  1. Small size,SMD Package with ceramic substrate
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)



Specifications:



Code Color Vf (V) If (mA) λd(nm)
CCT(K)
φv(lm) LES(mm)
TX-3535R3FC120-OGVEND34-03 Red 1.9-2.5 700 618-628nm 50-65lm Φ2.75
TX-3535G3FC120-OGVEND34-03 Green 2.8-3.6 700 520-530nm 80-110lm
TX-3535B3FC120-OGVEND34-03 Blue 2.8-3.6 700 456-468nm 19-31lm
TX-3535W3FC120-OGVEND34-A03 White 2.8-3.6 700 ≥7000 K 94-139lm
TX-3535Y3FC120-OGVCND34-01 Yellow 2.0-3.0 700 585-595nm 60-75lm
TX-3535P3FC120-OGVEZA72-01 Ultraviolet UV 3.0-3.6 700 380-400nm 1-1.5lm
TX-3535IR3FC120-OGVCND34-03

Infrared

IR

1.7-1.9V 350 850-858nm 260-320mW





Package Dimensions:



700mA Ultraviolet 3535 SMD LED 380nm - 400nm 3W UV LED Lamp



Applications:



Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

UV Curing, 3D pringing
