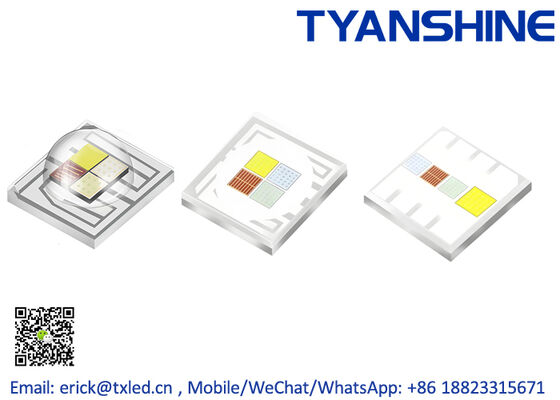

LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination

China LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination supplier
LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination supplier LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination supplier LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination supplier LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination supplier

Large Image :  LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS
Model Number: TX-3535RGBW4FC120-OGVEND34-03BH80

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: In tape reel
Contact Now
Detailed Product Description
Power: 4W Voltage: 2-3.4V
Current: 350mA Size: 3.45*3.45mm
LES: Φ2.85MM Certification: LM-80
High Light:

smd led chip

,

3535 smd led

SMD LED Diode Ceramic SMD3535 RGBW LEDs 5W Architectural illumination



Specification:



Item Code Color IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Power
(W)		 Lumen
(lm)		 LES
(mm)
TX-3535RGBW5FC120-OGVEND34-01 R 350 2.0-2.6 615-625 5 45-50 Φ2.85
G 350 3.0-3.4 518-528 80-85
B 350 3.0-3.4 450-458 15-17
W 350 3.0-3.4 5300-7000 85-90























Features:



  1. Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion, less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;

  2. 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;

  3. Anti-UV silicon domed lens, anti-aging and better light direction;

  4. Long lifespan over 50,000 hrs,Smaller package size for luminaries manufactures.

LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination



Other options:



LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination



ITEM CODE Color Power Remarks
TX-3535RGBW3FC120-OGVEND34-01A RGBW 3W W = 6000K
TX-3535RGBS3FC120-OGVEND34-01A RGBS 3W S = 3000K
TX-3535RGBW3FC120-OGVEND34-03 RGBW 3W Osram LED dies
TX-3535RGBW5FC120-OGVEND34-02 RGBW 5W W = 6000K
TX-3535RGBW5FC120-OGVEND34-02 RGBW 5W W = 4000K
TX-3535RGBS5FC120-OGVEND34-02 RGBS 3W S = 3000K
TX-3535RGB4FC120-OGVEND34-01 RGB 4W
TX-3535WA3FC120-OGVEND34-02 1800K/6000K 3W Osram LED dies
TX-3535WA5FC120-OGVEND34-01 1800K/6000K 5W 1800K = PC-Amber
TX-3535RGBY5FC120-OGVEND34-01 RGBY 5W





Secondary Lens (15° x 60° )

LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination



Color-mixing Effect:



LM-80 Ceramic SMD3535 RGBW LEDs 4W CRI80 with Osram chip Architectural illumination

Tag:

led diode,

surface mount led,

3528 smd led
