Ceramic SMD2016 LEDs 8Watt Red Green Blue White PC-Amber Lime Cyan 2500mA

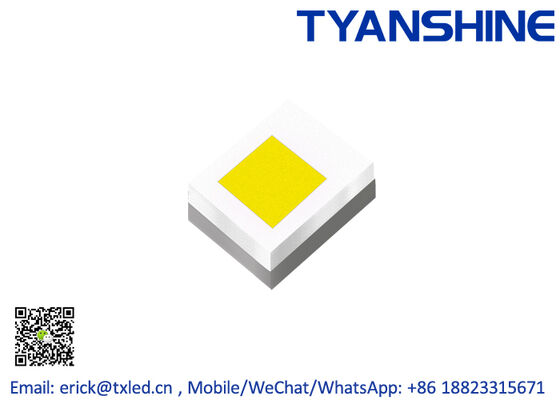

Large Image : Ceramic SMD2016 LEDs 8Watt Red Green Blue White PC-Amber Lime Cyan 2500mA

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-2016

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	R/G/B/W/C/A/L	Power:	8W
If:	2500mA	Package Size:	SMD2016
Substrate:	Ceramic
Highlight:	smd led chip , 3535 smd led

Ceramic SMD2016LEDs 3Watt Red Green Blue White PC-Amber Lime Cyan 1200mA

Features:

Small size,SMD Package with ceramic substrate
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)

Specifications:

Code	Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA	CRI
TX-2016R8VCA1-NP3CD-01	Red	2.1-2.7V	2500mA	620-625nm	95-120lm	/
TX-2016G8VCA1-NP3CD-01	Green	2.8-3.2V	2500mA	522-532nm	220-320lm	/
TX-2016B8VCA1-NP3CD-01	Blue	2.8-3.2V	2500mA	450-460nm 465-475nm	34-48lm 65-95lm	/
TX-2016C8VCA1-NP3CD-01	Cyan	2.8-3.2V	2500mA	485-510nm	80-120lm	/
TX-2016A8VCA1-NP3CD-01	PC-Amber	2.8-3.3V	2500mA	1750-1900K (587-590nm)	165-220lm	/
TX-2016L8VCA1-NP3CD-01	Lime	3.0-3.5V	2500mA	4030-4280k (565-568nm) 5400-5900K (549-552nm)	340-420lm	/
TX-2016W8VCA1-NP3CD-01H95	White	2.8-3.3V	2500mA	6300-7800K 2600-2800K	180-260lm 135-185lm	95
TX-2016W8VSA1-NP3CD-01H90	White	2.7-3.4V	2500mA	4500-5300K	185-225lm	90
TX-2016W8VSA1-NP3CD-01H80	White	2.7-3.4V	2500mA	2780-4300K 2850-3130K	230-320lm 220-280lm	80

Package Dimensions:

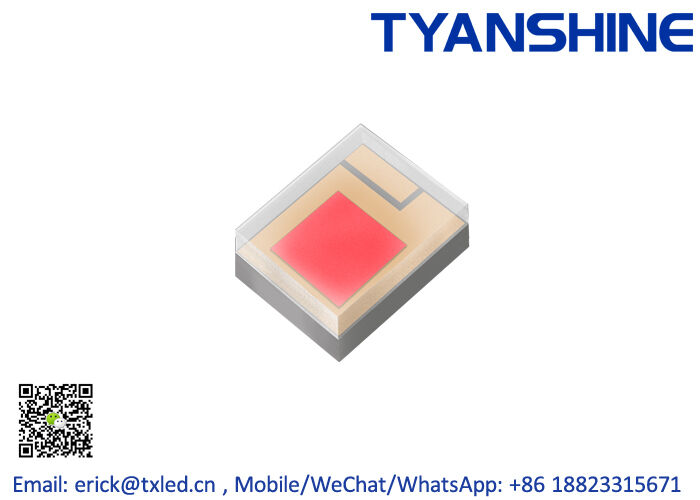

Ceramic SMD2016 LEDs 8Watt Red Green Blue White PC-Amber Lime Cyan 2500mA

Applications:

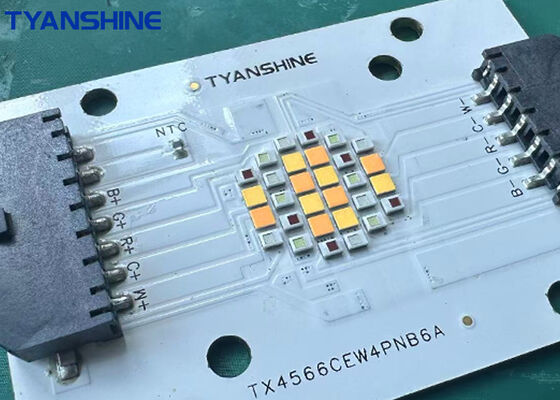

LED Module for Studio / Stage Lighting

Ceramic SMD2016 LEDs 8Watt Red Green Blue White PC-Amber Lime Cyan 2500mA

Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights
