DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module

China DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module supplier
DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module supplier DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module supplier DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module supplier

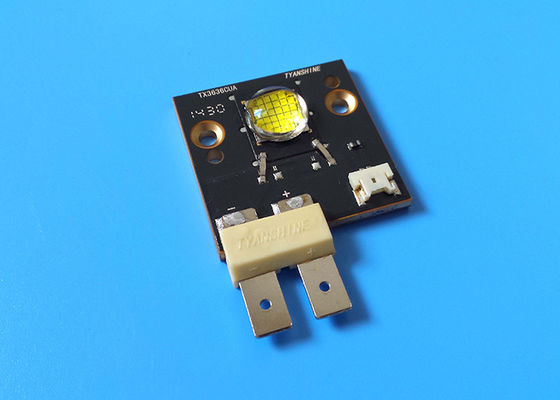

Large Image :  DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS SGS
Model Number: TX-3636W150FC120-NUVENG-A01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: In plastic Tray
Payment Terms: Western Union, T/T, L/C,PayPal
Contact Now
Detailed Product Description
Beam Angle: 100 Degree CCT: 5300K
Power: 150W CRI: 92Ra
Voltage: DC12-16V
High Light:

white led chip

,

white led diode

DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module




Features of the White LED:





1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.










Specifications:



Code Color

Vf

(V)

If

(A)



CCT(K)

Φv

(lm)

Power

LES

(mm)

TX-3636W90FC120
-NUVENG-A01
White 12-16 6.5 6500-8500 3600-4000 90 4.3 x 4.3
TX-3636W150FC120
-NUVENG-A01
White 12-16 11 6500-8500 6000-6500 150 6.5 x 6.5



Ta=85℃

Parameter Symbol Value (Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation PD 150 W
Continuous Forward Current IF 11 A
ElectrostaticDischarge Threshoid ESD 2000 V



If=11 A (Ta=85°C)

Parameter Symbol Values Unit
Min. Typical Max.
Luminous Flux φV 8500 9500 - lm
Viewing Angle at 50﹪IV 1/2 - 115 - Degree
Forward Voltage Vf 12 14 16 V
Colour Temperature CCT 6500 7500 8500 K
Thermal Resistance Junction to Case J-C - 0.2 - K/W



Typical Electrical / Optical Characteristics Curves

DC12V 5300K White Led Diode , 92Ra Medical Endoscope LED Module





Applications:



  • Entertainment lighting, Projection lights, Moving-Heads
  • Architectural lighting
  • Medical Illumination
  • Event lighting
  • Stage lighting Projection
  • Fiber optic lighting



Package: In Plastic Tray (4 pcs)
