7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array

China 7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array supplier
7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array supplier 7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array supplier 7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array supplier 7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array supplier

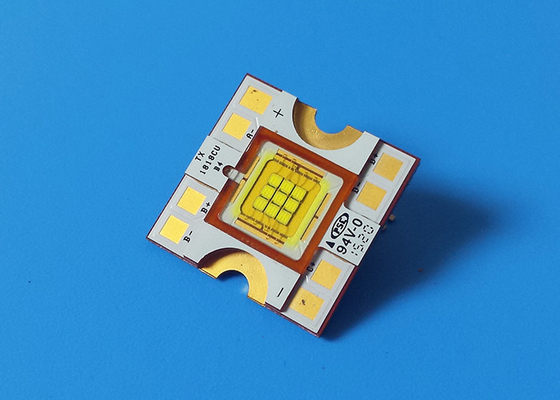

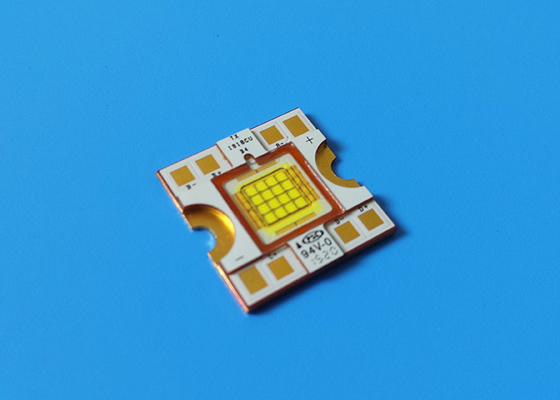

Large Image :  7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: SGS RoHS
Model Number: TX-1818W45FC75-CUHCNG-A01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: In Plastic Tray
Payment Terms: T/T, Western Union, L/C,PayPal
Contact Now
Detailed Product Description
Base Size: Copper 18x18 Power: 45W 60W
LES: 9x9mm CCT: 7000K - 8000K
Lumen: 4800lm Viewing Angle: 75° 180°
High Light:

white led diode

,

white led array

7000K White LED Module 45 W LED Emitter Flip-chip LEDs Array







Features of 60W White LED Arrays:



  1. High Brightness Vertical / Flip-chip LEDs
  2. Eutectic bonding to make sure the fast conductivity of heat, it's aim to the lumen maintenance;
  3. Small Light Emiting surface(LES) to enhance the light density;
  4. Using copper MCPCB to carry the LED chips, the LEDs can be installed directly to the heat sinks.



Power selections :



Item Code VF IF Power Lumen Viewing Angle
TX-1818W10FC65-CUHCNG-A01 3.2-4.0V 1.8A 10W 525-550lm 65°
TX-1818W20FC65-CUVCNG-A01 3.4-4.0V 5A 20W 1500-1700lm 65°
TX-1818W30FC120-CUHCNG-A01 13-17V 1.8A 30W 1600-1700lm 120°
TX-1818W45FC120-CUHCNG-A01 30-34V 1.5A 45W 3100-3400lm 120°
TX-1818W60FC120-CUHCNG-A01 28-32V 2.2A 60W 4400-4800lm 120°





Specifications White 60W LED Array:



Absolute Maximum Ratings at Ta=85℃



Item Code





TX-1818W60FC120-CUHCNG-A01



Parameter Symbol Value Unit
LED Junction Temperature Tj 150
Power Dissipation PD 60 W
Continuous Forward Current IF 2.2 A
ElectrostaticDischarge Threshoid ESD 2000 V

Characteristics at If= 2.2A (Ta=85°C):

Parameter Symbol Values Units
Min. Typical Max.
Luminous Flux φV 4400 4800 - lm
Viewing Angle at 50﹪IV 1/2 - 120 - degree
Forward Voltage Vf 28 30 32 V
Correlated Colour Temperature CCT 6500 7500 8500 K
Thermal Resistance Junction to Case J-C - 0.2 - K/W



Mechanical Dimensions:

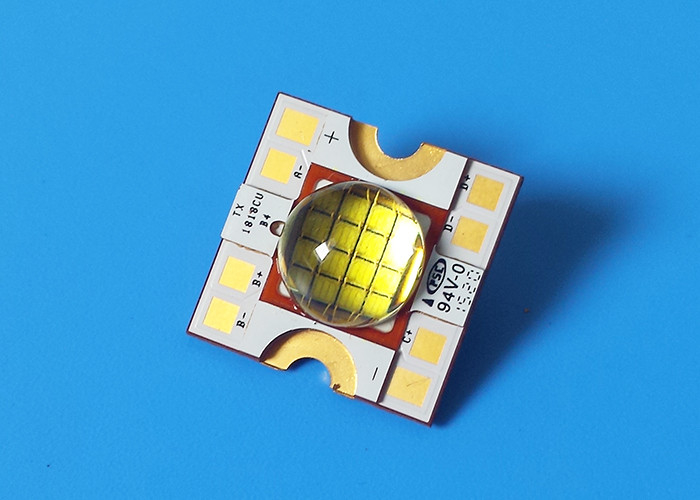

             45 W Convex LENs LED Light Engine , 6000K - 8000K 3400lm White LED Emitters

Applications:



Entertainment Lighting

Projection illumination - Projectors

Architectural illumination

Medical illumination
