Product Details:
Payment & Shipping Terms:
|
| CCT: | 3200K / 5600K / 7500K | Power: | 300W / 400W |
|---|---|---|---|
| Voltage: | 42V | Current: | 8A |
| CRI: | 95 / 70 | LES: | 11mm |
| Highlight: | led light module,led lighting engine |
||

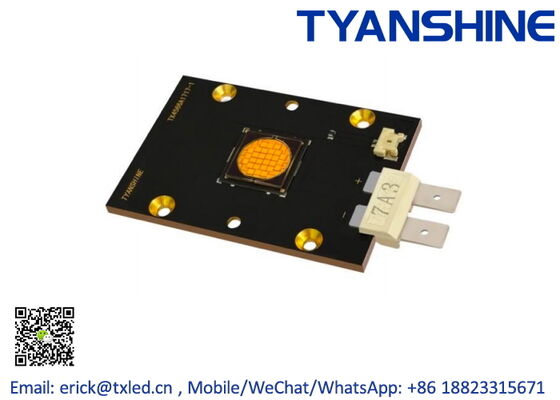

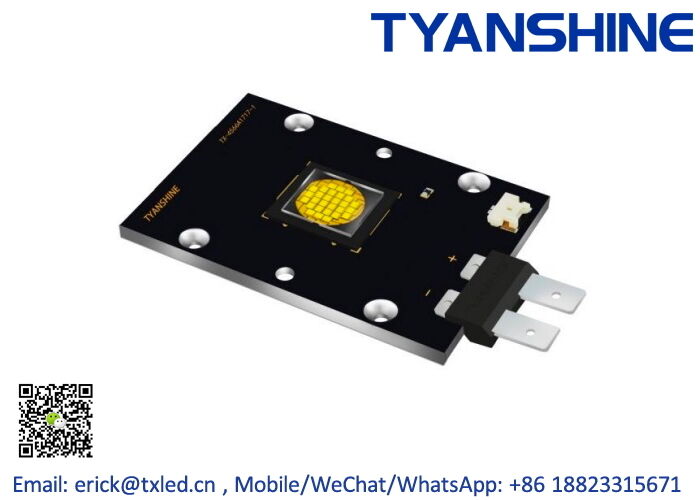

Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module
Features of the White LED:
1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for
Moving head lights.
2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance
3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.
Specifications:
| Power | Vf (V) | If (A) | CCT(K) | φv(lm) | CRI | LES(mm) |
| 300W | 40-44V | 8A | Daylight 5600K | 16200-22000 | 95 | 11 |
| 300W | 40-44V | 8A | Tungsten 3200K | 10800-14000 | 95 | |
| 400W | 41-45V | 9.2A | CoolWhite 7000-8500K | 32500-39500 | 70 |
Applications:
