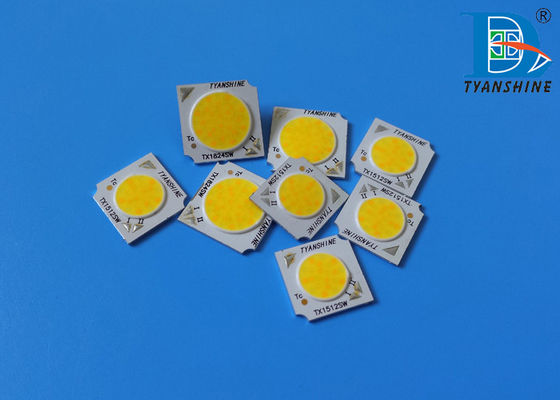

Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Large Image : Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001, ISO14001
Model Number:	TX-1312SW08A-2760V39-03H98

Payment & Shipping Terms:

Minimum Order Quantity:	100
Packaging Details:	In plastic tray

Contact Now

Detailed Product Description

Current:	400mA	Voltage:	36-39V
Power:	12W	Color Temp.:	2700K-6500K
Efficiency:	100lm/W	CRI:	98
COB Size:	13.35*13.35mm	LES:	Diameter 8mm
Highlight:	Tuneable White COB , cob smd led

Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Features of Bi-color White LED COB

Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
Compatible with the housing / reflectors and Lenses / holders

Specification:

Item Code

Color

I_F
(mA)

V_F
(V)

Power

(W)

CCT (K)

CRI
(Ra)

Lumen
(lm)

LES
(mm)

TX-1312SW08A-2760V39-03H98

400

36-39

5750-6300

800

Φ7.6

400

36-39

2620-2760

950

(W - White, S - WarmWhite) , Ta = 25℃

Full Spectrum:

CCT=3000K

CCT=6000K

Applications:

Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights
