Dynamic White COB LED 2800K-6000K LM80 20W COB LED Module CRI 95Ra

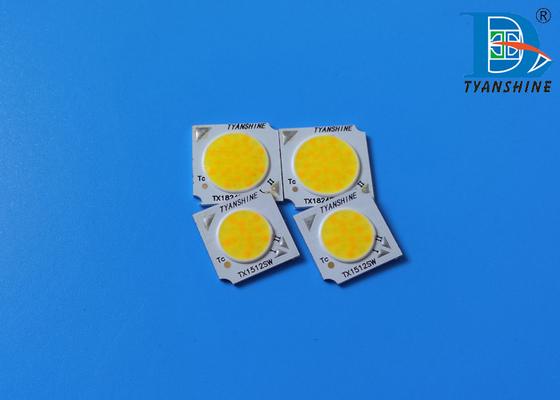

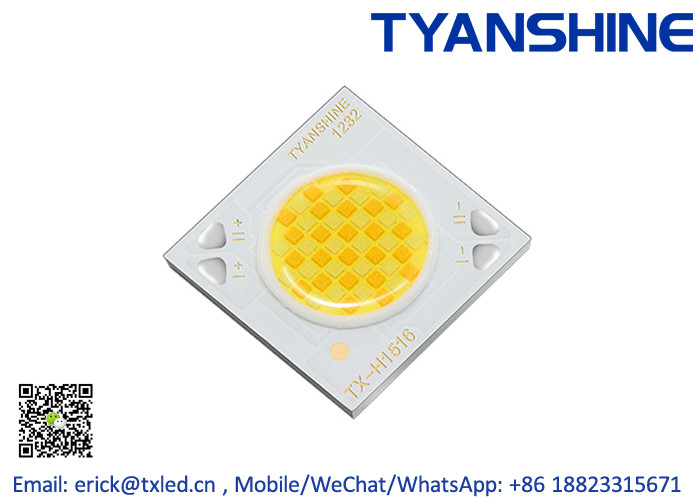

Large Image : Dynamic White COB LED 2800K-6000K LM80 20W COB LED Module CRI 95Ra

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	RoHS, LM80 (Pending)
Model Number:	TX-H1516SW11A-2860V36-03H95

Payment & Shipping Terms:

Minimum Order Quantity:	100
Packaging Details:	In plastic tray

Contact Now

Detailed Product Description

Current:	600mA	Input Voltage:	36V
Power:	20 Watt	CCT:	2800K-6000K
Efficiency:	95-105lm/W	CRI:	90Ra Or 95Ra
Dimension:	15.85*15.85mm	LES:	Φ11mm
High Light:	Tuneable White COB , high power cob led

Dynamic White COB LED 2800K-6000K LM80 20W COB LED Module CRI 95Ra

Features:

Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;

Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;

Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%

Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)

Dynamic White COB LED 2800K-6000K LM80 20W COB LED Module CRI 95Ra

Advantages VS Disadvantages:

TYANSHINE Tuneable White COB

Other Brands' Tuneable COB

1, Cross-distribution for the White and WarmWhite LED Dies;

2, Better performance of Color-mixing, without light strips or shadows;

3, Easy to adapt Lenses or reflectors

1, Strip arrays or Circular distribution of LED Dies;

2, Ununiformity of color-mixing, will be projected light strips or shadows;

3, Strictly requirements for Lenses/Relfectors

Specification:

Item Code

Color

I_F
(mA)

V_F
(V)

Power

(W)

CCT (K)

CRI
(Ra)

Lumen
(lm)

LES
(mm)

TX-H1516SW11A-2860V36-03H95

600

6000

1700

Φ11

600

2800

1200

(W - White, S - WarmWhite) , Ta = 25℃

Drawing of Bi-color COB LED Array:

Dynamic White COB LED 2800K-6000K LM80 20W COB LED Module CRI 95Ra

Applications:

Commercial lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Residential lighting

Smart lighting

TV / Film / Studio lighting

Fresnels lights

CIE BINNING: 3MacAdam Step
